CAN COMMUNICATION SYSTEM(w/o Central Gateway ECU) ECM Communication Stop Mode

DESCRIPTION

Detection Item Symptom Trouble Area
ECM Communication Stop Mode

Either condition is met:


  • "ECM (Engine)" is not displayed on the CAN Bus Check screen of the GTS Click here

  • Communication system DTCs (DTCs that start with U) that correspond to "ECM Communication Stop Mode" in "DTC Combination Table" are output Click here


  • Power source circuit of ECM

  • ECM main line or connector

  • ECM ground circuit

  • ECM

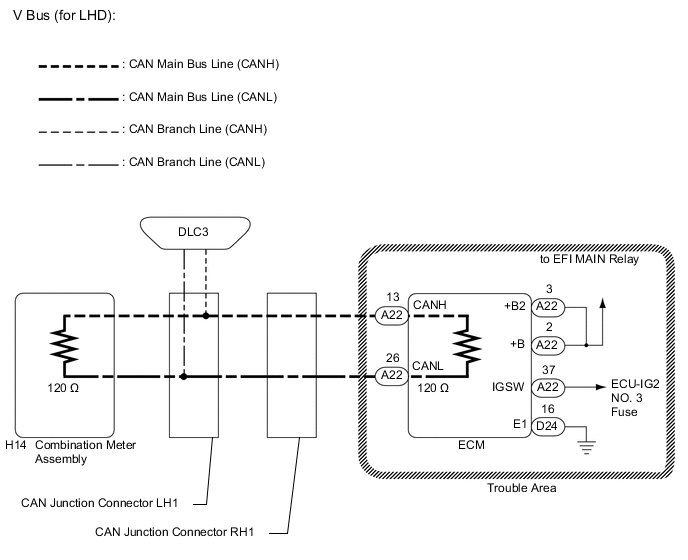

WIRING DIAGRAM

A0004MTE19
A0004MTE20

CAUTION / NOTICE / HINT

Note


  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key, switches or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Click here.

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output Click here.

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

  • DTC check procedure: Turn the power switch on (IG) and wait at least 20 seconds.

  • After the repair, perform CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed Click here.

Tech Tips


  • Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

  • Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

PROCEDURE


  1. CHECK FOR OPEN IN CAN BUS LINES (ECM MAIN LINE)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. A0006OTE03
      Text in Illustration
      *a

      Front view of wire harness connector

      (to ECM)

      Disconnect the A22 ECM connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A22-13 (CANH) - A22-26 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (ECM MAIN LINE)

    OK

  2. CHECK ECM POWER SOURCE CIRCUIT


    1. Check the ECM power source circuit Click here.


    OK

    REPLACE ECM Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
