VEHICLE STABILITY CONTROL SYSTEM AUTO LSD Indicator Light does not Come ON

DESCRIPTION

Refer to AUTO LSD Indicator Light Remains ON.

Click here

WIRING DIAGRAM

Refer to AUTO LSD indicator light circuit.

Click here

CAUTION / NOTICE / HINT

Note

When replacing the brake actuator assembly, perform zero point calibration.

Click here

PROCEDURE


  1. CHECK CAN COMMUNICATION SYSTEM


    1. Check if CAN communication system DTCs are output.

      for LHD with Central Gateway ECU: Click here

      for RHD with Central Gateway ECU: Click here

      for LHD without Central Gateway ECU: Click here

      for RHD without Central Gateway ECU: Click here

      Result
      Proceed to
      DTC is not output
      DTC is output (for LHD with Central Gateway ECU)
      DTC is output (for RHD with Central Gateway ECU)
      DTC is output (for LHD without Central Gateway ECU)
      DTC is output (for RHD without Central Gateway ECU)

    DTC is output (for LHD with Central Gateway ECU)

    CHECK CAN COMMUNICATION SYSTEM Click here

    DTC is output (for RHD with Central Gateway ECU)

    CHECK CAN COMMUNICATION SYSTEM Click here

    DTC is output (for LHD without Central Gateway ECU)

    CHECK CAN COMMUNICATION SYSTEM Click here

    DTC is output (for RHD without Central Gateway ECU)

    CHECK CAN COMMUNICATION SYSTEM Click here

    DTC is not output

  2. CHECK HARNESS AND CONNECTOR (CSW TERMINAL)


    1. Turn the ignition switch off.

    2. Disconnect the A100 skid control ECU (brake actuator assembly) connector.

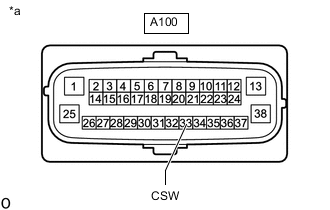

    3. B002A3VC08
      *a

      Front view of wire harness connector

      (to Skid Control ECU [Brake Actuator Assembly])

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      A100-33 (CSW) - Body ground VSC OFF switch (telltale light assembly) held on Below 1 Ω
      VSC OFF switch (telltale light assembly) (Not pressed) 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    INSPECT TELLTALE LIGHT ASSEMBLY Click here

    OK

  3. PERFORM ACTIVE TEST USING GTS (AUTO LSD INDICATOR LIGHT)


    1. Reconnect the A100 skid control ECU (brake actuator assembly) connector.

    2. Connect the GTS to the DLC3.

    3. Turn the ignition switch to ON.

    4. Turn the GTS on.

    5. Enter the following menus: Chassis / ABS/VSC/TRC / Active Test.

    6. According to the display on the GTS, perform the Active Test.


      Chassis > ABS/VSC/TRC > Active Test
      Tester Display Measurement Item Control Range Diagnostic Note
      Auto LSD Indicator Light AUTO LSD indicator light Indicator light ON/OFF

      for 2WD

      Observe combination meter

      Vehicle condition: Vehicle stopped

    7. When performing the AUTO LSD Indicator Light Active Test, check AUTO LSD Indicator Light in the Data List.


      Chassis > ABS/VSC/TRC > Data List
      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Auto LSD Indicator Light AUTO LSD indicator light ON or OFF

      OFF: AUTO LSD indicator light off

      ON: AUTO LSD indicator light on

      		 for 2WD

      Chassis > ABS/VSC/TRC > Active Test
      Active Test Display
      Auto LSD Indicator Light
      Data List Display
      Auto LSD Indicator Light
      Result
      Result Proceed to
      AUTO LSD indicator light in the Data List does not change using the Active Test A
      AUTO LSD indicator light in the Data List turns ON/OFF using the Active Test B

    A

    REPLACE BRAKE ACTUATOR ASSEMBLY Click here

    B

  4. INSPECT COMBINATION METER ASSEMBLY


    1. Turn the ignition switch off.

    2. Perform Active Test of the combination meter assembly using the GTS.


      Body Electrical > Combination Meter > Active Test
      Tester Display
      Indicat. Auto LSD

    3. Check the combination meter assembly.

      OK
      The AUTO LSD indicator light turns on or off in accordance with the GTS.
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY Click here

    NG

    INSPECT METER / GAUGE SYSTEM Click here

  5. INSPECT TELLTALE LIGHT ASSEMBLY


    1. Remove the VSC OFF switch (telltale light assembly).

      Click here

    2. Inspect the VSC OFF switch (telltale light assembly).

      Click here

      Result
      Proceed to
      OK
      NG

    NG

    REPLACE TELLTALE LIGHT ASSEMBLY Click here

    OK

  6. CHECK HARNESS AND CONNECTOR (BRAKE ACTUATOR ASSEMBLY - TELLTALE LIGHT ASSEMBLY)


    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A100-33 (CSW) - G43-6 (+) Always Below 1 Ω
      G43-13 (E) - Body ground Always Below 1 Ω
      A100-33 (CSW) or G43-6 (+) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    OK

    USE SIMULATION METHOD TO CHECK Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
