LIN COMMUNICATION SYSTEM, Diagnostic DTC:B2322

DTC Code DTC Name
B2322 Front Passenger Side Door ECU Communication Stop

DESCRIPTION

This DTC is stored when LIN communication between the power window regulator motor assembly (for front passenger door) and main body ECU (multiplex network body ECU) stops for 10 seconds or more.

DTC No. DTC Detection Condition Trouble Area
B2322 No communication between power window regulator motor assembly (for front passenger door) and main body ECU (multiplex network body ECU) for 10 seconds or more.
  • Power window regulator motor assembly (for front passenger door)

  • Main body ECU (multiplex network body ECU)

  • Instrument panel junction block assembly

  • Wire harness or connector

  • DOOR F/R fuse (w/ Jam Protection Function on 4 Windows for LHD)

  • DOOR F/L fuse (w/ Jam Protection Function on 4 Windows for RHD)

  • DOOR NO. 3 fuse (w/ Jam Protection Function on Front Door Windows)

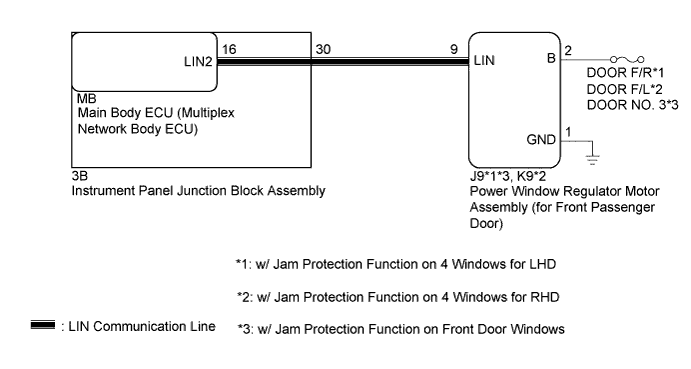

WIRING DIAGRAM

B000NQNE02

INSPECTION PROCEDURE

Note


  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

  • When a power window regulator motor assembly is replaced or removed and reinstalled, it requires initialization.


    • w/ Jam Protection Function on 4 Windows: Click here

      w/ Jam Protection Function on Front Door Windows: Click here

  • When using the intelligent tester to troubleshoot with the ignition switch off:

    Connect the intelligent tester to the DLC3, and turn the courtesy switch on and off at 1.5-second intervals until communication between the intelligent tester and vehicle begins.

PROCEDURE


  1. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY


    1. Remove the instrument panel junction block assembly Click here.

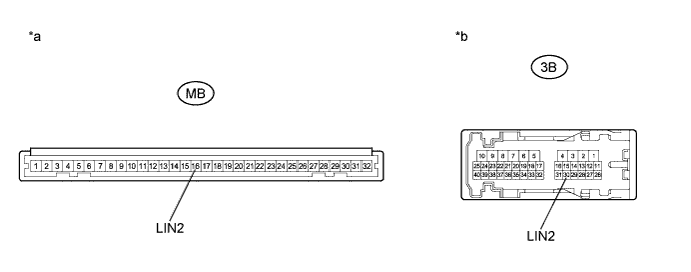

      B000ME0E01
    2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Tech Tips

      This inspection is to check the LIN line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).

      Standard Resistance
      Tester Connection Condition Specified Condition
      3B-30 (LIN2) - MB-16 (LIN2) Always Below 1 Ω
      Text in Illustration
      *a

      Component without harness connected

      (Instrument Panel Junction Block Assembly)

      *b

      Component without harness connected

      (Instrument Panel Junction Block Assembly)


    NG
    OK
  2. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - POWER WINDOW REGULATOR MOTOR)


    1. Disconnect the J9*1 or K9*2 power window regulator motor assembly (for front passenger door) connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition

      3B-30 (LIN2) - J9-9 (LIN)*1

      3B-30 (LIN2) - K9-9 (LIN)*2

      Always Below 1 Ω
      3B-30 (LIN2) - Body ground Always 10 kΩ or higher

      • *1: for LHD

      • *2: for RHD


    NG
    OK
  3. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR - BATTERY, BODY GROUND)


    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition

      J9-2 (B) - Body ground*1

      K9-2 (B) - Body ground*2

      Always 11 to 14 V
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition

      J9-1 (GND) - Body ground*1

      K9-1 (GND) - Body ground*2

      Always Below 1 Ω

      • *1: for LHD

      • *2: for RHD


    NG
    OK
  4. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR FRONT PASSENGER DOOR)


    1. Replace the power window regulator motor assembly (for front passenger door).


      • w/ Jam Protection Function on 4 Windows: Click here

        w/ Jam Protection Function on Front Door Windows: Click here


    NEXT
  5. CHECK DTC OUTPUT


    1. Clear the DTC Click here.

    2. Check for DTCs.

      OK
      DTC B2322 is not output.

    NG
    OK
