POWER STEERING SYSTEM ON-VEHICLE INSPECTION


  1. INSPECT DRIVE BELT

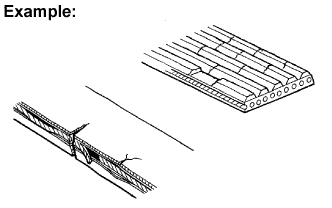

    1. B007PIWE03

      Visually check the drive belt for excessive wear, frayed cords, etc.

      If any defect is found, replace the drive belt.

      Tech Tips

      Cracks on the rib side of a belt are considered acceptable. Replace the belt if there are any missing ribs.

  2. CHECK FLUID LEVEL


    1. Keep the vehicle level.

    2. With the engine stopped, check the fluid level in the reservoir.

      B007VMJE04

      If necessary, add fluid.

      Fluid
      ATF DEXRON II or III, or equivalent

      Tech Tips

      If the fluid is hot, check that the fluid level is within the HOT range on the oil reservoir or cap dipstick. If the fluid is cold, check that the fluid level is within the COLD range.

    3. Start the engine and run at idle.

    4. Turn the steering wheel from lock to lock several times to raise fluid temperature.

      Fluid temperature
      75 to 80°C (167 to 176°F)
    5. B007RPIE03

      Check for foaming or emulsification.

      If foaming or emulsification is identified, bleed the power steering system Click here.

    6. With the engine idling, measure the fluid level in the oil reservoir.

    7. Stop the engine.

    8. B007PONE01

      Wait a few minutes and remeasure the fluid level in the oil reservoir.

      Maximum fluid level rise
      5 mm (0.20 in.)

      If a problem is found, bleed the power steering system Click here.

    9. Check the fluid level.

  3. INSPECT STEERING FLUID PRESSURE

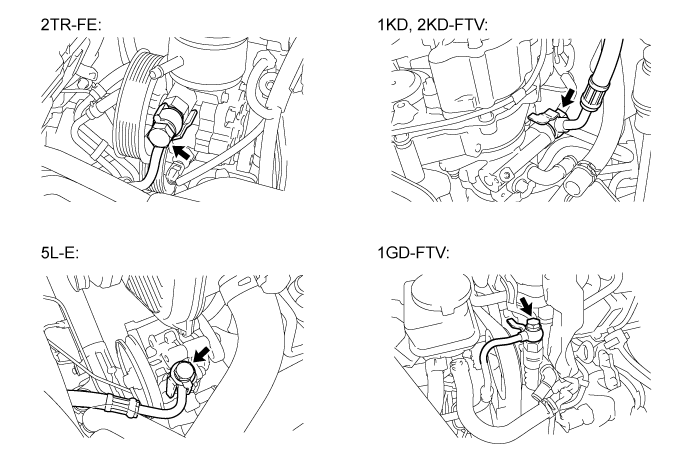

    1. Remove the union bolt and separate the pressure feed tube assembly.

      B007OELE02

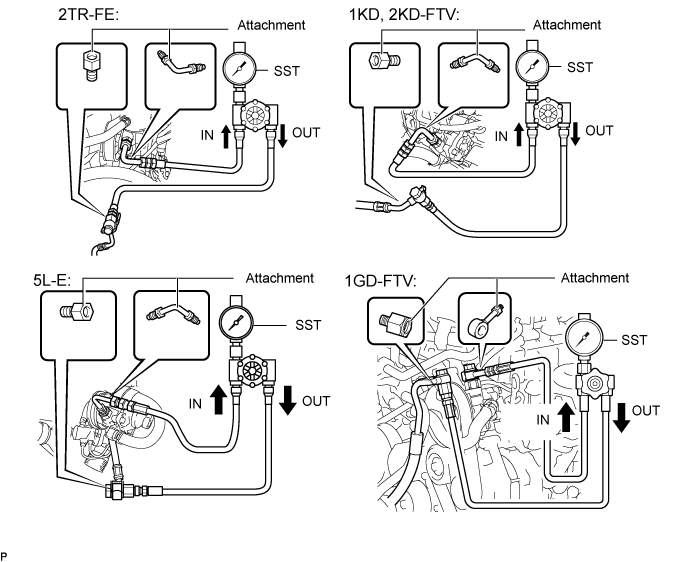

    2. Connect SST as shown in the illustration.

      SST
      09640-10011   ( 09641-01010, 09641-01030, 09641-01040, 09641-01060, 09641-01070 )
      B007RIOE03

      Note

      Check that the valve of the SST is in the open position.

    3. Bleed the power steering system Click here.

    4. Start the engine and run at idle.

    5. Turn the steering wheel from lock to lock several times to raise fluid temperature.

      Fluid temperature
      75 to 80°C (167 to 176°F)

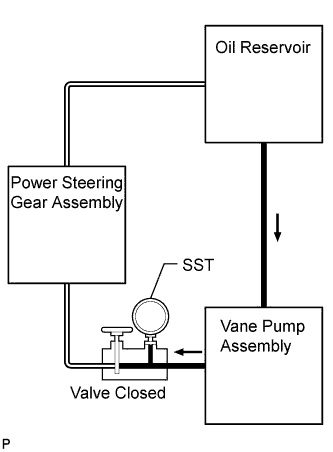

    6. B007SN7E01

      With the engine idling, close the valve of the SST and observe the reading on the SST.

      Fluid pressure
      2TR-FE, 2KD-FTV, 1KD-FTV, 1GD-FTV
      9300 to 10000 kPa (95 to 102 kgf/cm2, 1349 to 1450 psi)
      5L-E
      8300 to 8800 kPa (85 to 90 kgf/cm2, 1204 to 1276 psi)

      Note


      • Do not keep the valve closed for more than 10 seconds.

      • Do not allow the fluid temperature to become too high.

      If not within the specified range, check for fluid leaks and replace parts as necessary.

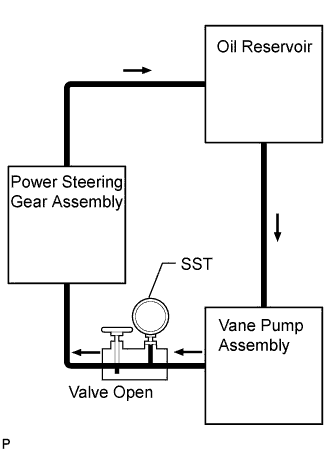

    7. B007OF7E01

      With the engine idling, open the valve fully.

    8. Measure the fluid pressure at engine speeds of 1000 rpm and 3000 rpm.

      Difference in fluid pressure
      490 kPa (5 kgf/cm2, 71 psi) or less

      Note

      Do not turn the steering wheel.

      If not within the specified range, check for fluid leaks and replace parts as necessary.

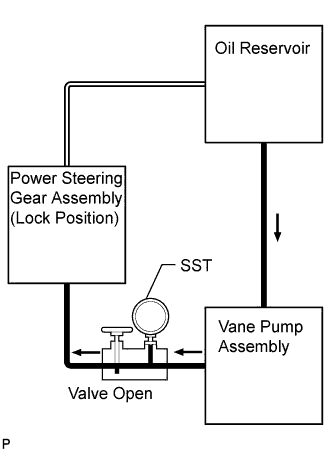

    9. B007VGLE01

      With the engine idling and the valve fully opened, turn the steering wheel left or right to the full lock position. Observe the reading on the SST.

      Fluid pressure
      2TR-FE, 2KD-FTV, 1KD-FTV, 1GD-FTV
      9300 to 10000 kPa (95 to 102 kgf/cm2, 1349 to 1450 psi)
      5L-E
      8300 to 8800 kPa (85 to 90 kgf/cm2, 1204 to 1276 psi)

      Note


      • Do not keep the steering wheel in the full lock position for more than 10 seconds.

      • Do not allow the fluid temperature to become too high.

      If not within the specified range, check for fluid leaks and replace parts as necessary.

    10. Disconnect the SST.

    11. Connect the pressure feed tube assembly Click here.

    12. Bleed the power steering system. Click here

  4. CHECK STEERING EFFORT

    Note

    Some service operations affect the SRS airbags. Be sure to read the precautionary notice for the SRS airbags before servicing Click here.


    1. Stop the vehicle on a level, paved surface and align the wheels straight ahead.

    2. Disconnect the negative (-) battery cable from the battery Click here.

    3. Remove the steering pad Click here.

    4. Connect the negative (-) battery cable to the battery.

    5. Using a torque wrench, check if the steering wheel set nut is properly tightened.

      Torque:
      50 N*m  { 510 kgf*cm, 37 ft.*lbf }

    6. Start the engine and run at idle.

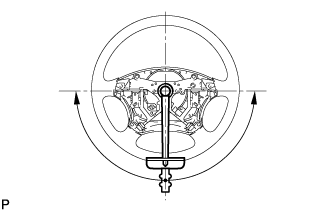

    7. B007SOH

      Turn the steering wheel 90 degrees to the right and check steering effort (torque) while turning the wheel. Check in the opposite direction in the same manner.

      Steering effort (Reference)
      6.0 N*m (61 kgf*cm, 53 in.*lbf) or less

      Tech Tips

      Check tire type, pressure, and the road surface before making your diagnosis.

      If not within the specified range, check the power steering system Click here.

    8. Disconnect the negative (-) battery cable from the battery.

    9. Torque the steering wheel set nut.

      Torque:
      50 N*m  { 510 kgf*cm, 37 ft.*lbf }

    10. Install the steering pad Click here.

    11. Connect the negative (-) battery cable to the battery.

    12. Clear the DTCs Click here.

    13. Perform initialization Click here.

    14. Inspect the airbag warning light Click here.
