LUMBAR SWITCH REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front lumbar power seat switch removal/installation are shown below.

Replacement Part or Procedure	Necessary Procedures	Effects/Inoperative when not Performed	Link
Disconnect cable from negative battery terminal	Memorize steering angle neutral point	LKA /LDA system	Click here
		Pre-crash safety system
		Lighting system (EXT) Cornering lights
		Adaptive high beam system
		Parking Assist Monitor System (w/ Parallel Parking Assist Function)	Click here
		Parking Assist Monitor System (w/o Parallel Parking Assist Function)	Click here
		Panoramic view monitor system	Click here
	Drive the vehicle until stop and start control is permitted (approximately 15 to 60 minutes)	Stop and start system	Click here
	Initialize back door lock	Power door lock control system	Click here
	Reset back door close position	Power back door system	Click here
w/ occupant classification system Front passenger seat	Zero point calibration (Occupant classification system)	Occupant classification system Passenger airbag ON/OFF indicator Airbag system (Front passenger side) Seat belt warning system (Front passenger)	Click here

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here
Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

PROCEDURE

REMOVE FRONT SEAT ASSEMBLY

Click here
DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY

Click here
REMOVE FRONT SEAT CUSHION SHIELD (for Standard Seat Type)

Click here
REMOVE INNER NO. 1 FRONT SEAT CUSHION SHIELD (for Sports Seat Type)

Click here
REMOVE FRONT SEAT CUSHION SHIELD (for Sports Seat Type)

Click here
REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB (w/ Seat Position Memory System)

Click here
REMOVE RECLINING POWER SEAT SWITCH KNOB (w/ Seat Position Memory System)

Click here
REMOVE POSITION CONTROL ECU AND SWITCH ASSEMBLY (w/ Seat Position Memory System)

Click here
REMOVE FRONT LUMBAR POWER SEAT SWITCH

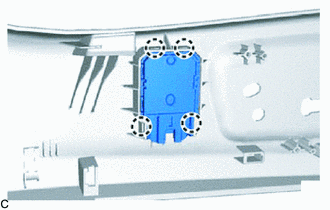

1. Disengage the 4 claws to remove the front lumbar power seat switch from the front seat cushion shield.
