REAR SEATBACK HEATER(for 60/40 Split Seat Type LH Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear seatback heater removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative battery terminal	Memorize steering angle neutral point	LKA/LDA System	Click here
		Pre-Crash Safety System
		Lighting System (EXT) Cornering lights
		Adaptive High Beam System
	Drive the vehicle until stop and start control is permitted (approximately 15 to 60 minutes)	Stop and start system	Click here
	Memorize steering angle neutral point	Parking Assist Monitor System (w/ Parallel Parking Assist Function)	Click here
		Parking Assist Monitor System (w/o Parallel Parking Assist Function)	Click here
		Panoramic View Monitor System	Click here
	Initialize back door lock	Power door lock control system	Click here
	Reset back door close position	Power back door system	Click here

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here
Wear protective gloves. Sharp areas on the seat frame may injure your hands.

PROCEDURE

REMOVE REAR SEAT ASSEMBLY LH

Click here
REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

Click here
REMOVE REAR SEAT COVER CAP LH (for Manual Seat)

Click here
REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH (for Manual Seat)

Click here
REMOVE POWER SEAT SWITCH ASSEMBLY (for Power Seat)

Click here
DISCONNECT SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

Click here
REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

Click here
REMOVE REAR SEATBACK COVER LH

Click here
REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH

Click here
REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

Click here
REMOVE REAR SEATBACK HEATER (SEPARATE TYPE REAR SEATBACK COVER)

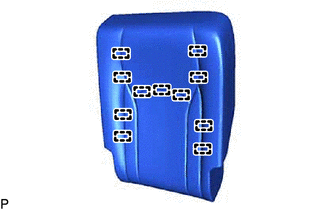

1. Remove the 11 hog rings and rear seatback heater (separate type seatback cover) from the separate type rear seatback pad.
