AIRBAG SYSTEM, Diagnostic DTC:B1925/78, B1926/78, B1927/78, B1928/78

DTC Code DTC Name
B1925/78 Short in Rear Pretensioner Squib LH Circuit
B1926/78 Open in Rear Pretensioner Squib LH Circuit
B1927/78 Short to GND in Rear Pretensioner Squib LH Circuit
B1928/78 Short to B+ in Rear Pretensioner Squib LH Circuit

DESCRIPTION

The rear pretensioner squib LH circuit consists of the airbag sensor assembly and rear No. 1 seat outer belt assembly LH.

The airbag sensor assembly uses this circuit to deploy the pretensioner when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the rear pretensioner squib LH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Test Mode / Check Mode
B1925/78 Short in Rear Pretensioner Squib LH Circuit

  • The airbag sensor assembly detects a line short in the rear pretensioner squib LH circuit during the primary check.

  • Rear pretensioner squib LH malfunction

  • Airbag sensor assembly malfunction

  • No. 2 floor wire

  • Rear pretensioner squib LH (Rear No. 1 seat outer belt assembly LH)

  • Airbag sensor assembly

 Applies to check mode
B1926/78 Open in Rear Pretensioner Squib LH Circuit

  • The airbag sensor assembly detects an open in the rear pretensioner squib LH circuit.

  • Rear pretensioner squib LH malfunction

  • Airbag sensor assembly malfunction

  • No. 2 floor wire

  • Rear pretensioner squib LH (Rear No. 1 seat outer belt assembly LH)

  • Airbag sensor assembly

 Applies to check mode
B1927/78 Short to GND in Rear Pretensioner Squib LH Circuit

  • The airbag sensor assembly detects a short to ground in the rear pretensioner squib LH circuit.

  • Rear pretensioner squib LH malfunction

  • Airbag sensor assembly malfunction

  • No. 2 floor wire

  • Rear pretensioner squib LH (Rear No. 1 seat outer belt assembly LH)

  • Airbag sensor assembly

 Applies to check mode
B1928/78 Short to B+ in Rear Pretensioner Squib LH Circuit

  • The airbag sensor assembly detects a short to B+ in the rear pretensioner squib LH circuit.

  • Rear pretensioner squib LH malfunction

  • Airbag sensor assembly malfunction

  • No. 2 floor wire

  • Rear pretensioner squib LH (Rear No. 1 seat outer belt assembly LH)

  • Airbag sensor assembly

 Applies to check mode

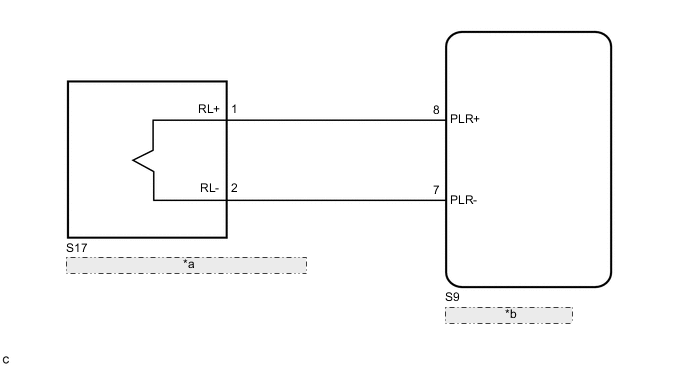

WIRING DIAGRAM

B007WMTE44
*a Rear Pretensioner Squib LH (Rear No. 1 Seat Outer Belt Assembly LH)
*b Airbag Sensor Assembly

CAUTION / NOTICE / HINT

Note

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

Tech Tips


  • Perform the simulation method by selecting check mode (Signal Check) using the GTS.

    Click here

  • After selecting check mode (Signal Check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city road or rough road.

    Click here

PROCEDURE


  1. CHECK CONNECTORS


    1. B007Y0CC01
      *1 Rear No. 1 Seat Outer Belt Assembly LH
      *2 Airbag Sensor Assembly
      *3 No. 2 Floor Wire

      Turn the engine switch off.

    2. Disconnect the cable from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the rear No. 1 seat outer belt assembly LH and airbag sensor assembly.

      OK
      The connectors are properly connected.

      Tech Tips

      If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the rear No. 1 seat outer belt assembly LH and airbag sensor assembly.

    5. Check that the terminals of the connectors are not deformed or damaged.

      OK
      The terminals are not deformed or damaged.

    6. Check that the No. 2 floor wire connector (on the rear No. 1 seat outer belt assembly LH side) is not loose, deformed or damaged.

      OK
      The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

    7. Check that the short springs of the activation prevention mechanism of the No. 2 floor wire connector are not deformed or damaged.

      OK
      The short springs are not deformed or damaged.
      Result
      Proceed to
      OK
      NG

    NG

    REPLACE NO. 2 FLOOR WIRE

    OK

  2. CHECK REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

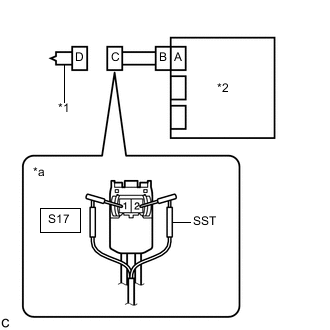

    1. B007YL8C14
      *1 Rear No. 1 Seat Outer Belt Assembly LH
      *2 Airbag Sensor Assembly
      *a

      Front view of wire harness connector

      (to Rear No. 1 Seat Outer Belt Assembly LH)

      Connect the connector to the airbag sensor assembly.

    2. Connect SST (resistance 2.1 Ω) to connector C.

      CAUTION:

      Never connect a tester to the rear No. 1 seat outer belt assembly LH for measurement, as this may lead to a serious injury due to pretensioner deployment.

      Note


      • Do not forcibly insert SST into the terminals of the connector when connecting it.

      • Insert SST straight into the terminals of the connector.

      SST
      09843-18061

    3. Connect the cable to the negative (-) battery terminal.

    4. Clear the DTCs stored in memory.

      Click here


      Body Electrical > SRS Airbag > Clear DTCs

    5. Turn the engine switch off.

    6. Turn the engine switch on (IG), and wait for at least 60 seconds.

    7. Check for DTCs.

      Click here


      Body Electrical > SRS Airbag > Trouble Codes
      OK
      DTC B1925/78, B1926/78, B1927/78 or B1928/78 is not output.

      Tech Tips

      Codes other than DTCs B1925/78, B1926/78, B1927/78 and B1928/78 may be output at this time, but they are not related to this check.

    8. Turn the engine switch off.

    9. Disconnect the cable from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    10. Disconnect SST from connector C.

      Result
      Proceed to
      OK
      NG

    OK

    REPLACE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH w/o Rear No. 2 Seat: Click here
    REPLACE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH w/ Rear No. 2 Seat: Click here

    NG

  3. CHECK NO. 2 FLOOR WIRE

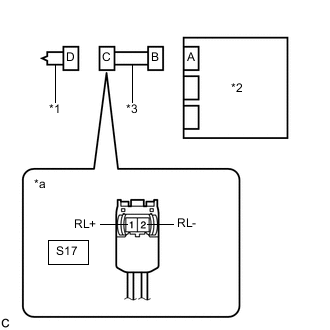

    1. B008054C14
      *1 Rear No. 1 Seat Outer Belt Assembly LH
      *2 Airbag Sensor Assembly
      *3 No. 2 Floor Wire
      *a

      Front view of wire harness connector

      (to Rear No. 1 Seat Outer Belt Assembly LH)

      Disconnect the No. 2 floor wire from the airbag sensor assembly.

    2. Check for a short to B+ in the circuit.


      1. Connect the cable to the negative (-) battery terminal.

      2. Turn the engine switch on (IG).

      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage
        Tester Connection Condition Specified Condition
        S17-1 (RL+) - Body ground Engine switch on (IG) Below 1 V
        S17-2 (RL-) - Body ground Engine switch on (IG) Below 1 V

      4. Turn the engine switch off.

      5. Disconnect the cable from the negative (-) battery terminal.

        CAUTION:

        Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check for an open in the circuit.


      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Condition Specified Condition
        S17-1 (RL+) - S17-2 (RL-) Always Below 1 Ω

    4. Check for a short to ground in the circuit.


      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Condition Specified Condition
        S17-1 (RL+) - Body ground Always 1 MΩ or higher
        S17-2 (RL-) - Body ground Always 1 MΩ or higher

    5. Check for a short in the circuit.


      1. Release the activation prevention mechanism built into connector B.

        Click here

      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Condition Specified Condition
        S17-1 (RL+) - S17-2 (RL-) Always 1 MΩ or higher

      3. Restore the released activation prevention mechanism of connector B to the original condition.

      Result
      Proceed to
      OK
      NG

    NG

    REPLACE NO. 2 FLOOR WIRE

    OK

  4. CHECK DTC

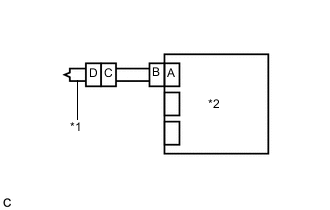

    1. B007X08C17
      *1 Rear No. 1 Seat Outer Belt Assembly LH
      *2 Airbag Sensor Assembly

      Connect the connectors to the rear No. 1 seat outer belt assembly LH and airbag sensor assembly.

    2. Connect the cable to the negative (-) battery terminal.

    3. Clear the DTCs stored in memory.

      Click here


      Body Electrical > SRS Airbag > Clear DTCs

    4. Turn the engine switch off.

    5. Turn the engine switch on (IG), and wait for at least 60 seconds.

    6. Check for DTCs.

      Click here


      Body Electrical > SRS Airbag > Trouble Codes
      OK
      DTC B1925/78, B1926/78, B1927/78 or B1928/78 is not output.

      Tech Tips

      Codes other than DTCs B1925/78, B1926/78, B1927/78 and B1928/78 may be output at this time, but they are not related to this check.

      Result
      Proceed to
      OK
      NG

    OK

    USE SIMULATION METHOD TO CHECK Click here

    NG

    REPLACE AIRBAG SENSOR ASSEMBLY Click here
