REAR SEAT RECLINING CONTROL CABLE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear seat reclining control cable removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Disconnect cable from negative battery terminal Memorize steering angle neutral point LKA/LDA System

Click here

Intelligent clearance sonar system*1
Pre-Crash Safety System

Lighting System (EXT)


  • Cornering lights
Adaptive High Beam System
Drive the vehicle until stop and start control is permitted (approximately 15 to 60 minutes) Stop and start system

Click here

Memorize steering angle neutral point Parking Assist Monitor System (w/ Parallel Parking Assist Function)

Click here

Parking Assist Monitor System (w/o Parallel Parking Assist Function)

Click here

Panoramic View Monitor System

Click here

Initialize back door lock Power door lock control system

Click here

Reset back door close position Power back door system

Click here

*1: When performing learning using the GTS.

Click here

CAUTION:


  • B007WTA

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Click here

  • Wear protective gloves. Sharp areas on the seat frame may injure your hands.

PROCEDURE


  1. REMOVE TONNEAU COVER ASSEMBLY

    Click here

  2. REMOVE DECK BOARD ASSEMBLY

    Click here

  3. REMOVE REAR NO. 3 FLOOR BOARD

    Click here

  4. REMOVE SPARE WHEEL COVER (for Compact Spare Tire)

    Click here

  5. REMOVE REAR DECK FLOOR BOX (w/ Spare Tire)

    Click here

  6. REMOVE REAR FLOOR CARPET (w/o Spare Tire)

    Click here

  7. REMOVE REAR NO. 4 FLOOR BOARD (except Full Size Spare Tire)

    Click here

  8. REMOVE REAR NO. 4 FLOOR BOARD (for Full Size Spare Tire)

    Click here

  9. REMOVE DECK FLOOR BOX RH (w/o Spare Tire)

    Click here

  10. REMOVE DECK SIDE TRIM BOX RH (except Full Size Spare Tire)

    Click here

  11. REMOVE DECK SIDE TRIM BOX RH (for Full Size Spare Tire)

    Click here

  12. REMOVE REAR FLOOR FINISH PLATE

    Click here

  13. REMOVE REAR DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  14. REMOVE REAR SEAT ASSEMBLY LH

    Click here

  15. REMOVE REAR SEAT ASSEMBLY RH

    Click here

  16. REMOVE UPPER QUARTER TRIM PAD RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  17. REMOVE REAR SEAT SIDE GARNISH RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  18. REMOVE REAR FLOOR FINISH SIDE PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  19. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Click here

  20. REMOVE ROPE HOOK ASSEMBLY

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  21. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Click here

  22. REMOVE RECLINING REMOTE CONTROL BEZEL RH

    Click here

  23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Click here

  24. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH


    1. Disengage the 5 clamps.

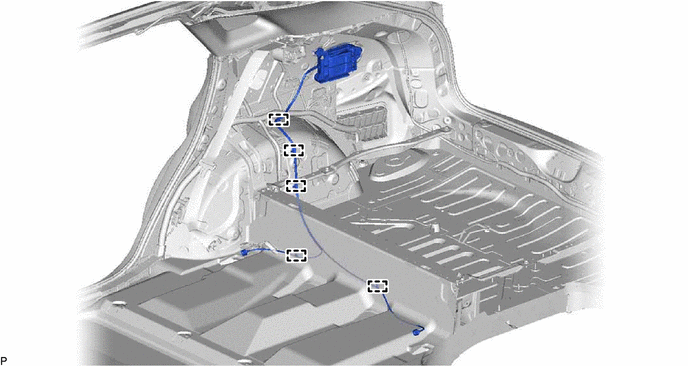

      B007XQS

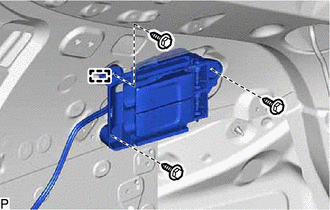

    2. B007XPW

      Remove the 3 bolts.

    3. Disengage the guide to remove the reclining remote control lever sub-assembly RH.
