AIRBAG CUT-OFF INDICATOR LIGHT REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the telltale light assembly removal/installation are shown below.

Necessary Procedures after parts removed / installed / replaced
Replacement Part or Procedure Necessary Procedures Effects / Inoperative when not Performed Link
Disconnect cable from negative (-) battery terminal Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) Stop and start system

Click here

Memorize steering angle neutral point LKA/LDA system

Click here

Parking support brake system*
Pre-collision system
Adaptive high beam system

    Lighting system (EXT)

  • Cornering lights
Variable gear ratio steering system

Click here

Parking assist monitor system

Click here

Panoramic View Monitor System

Click here

Initialize Rear Door Sunshade System Rear door sunshade system

Click here

Initialize power trunk lid system Power trunk lid system

Click here

*: When performing learning using the GTS.
Click here Click here

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. PRECAUTION

    CAUTION:

    Be sure to read precaution thoroughly before servicing.

    Click here

    B006BC1

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Click here

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    B006BY6

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE MULTI-DISPLAY

    Click here

  5. REMOVE TELLTALE LIGHT ASSEMBLY

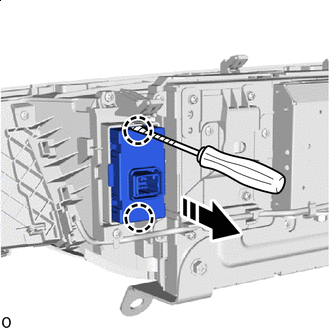

    1. B0069GUC01
      B006DHE Remove in this Direction

      Using screwdriver, detach the claw and remove the telltale light assembly.

      Note

      When removing the telltale light assembly, make sure that no dust, etc., enters the inside of the multi-display.

      Tech Tips

      Tape the screwdriver tip before use.
