СИСТЕМА АВТОМАТИЧЕСКОЙ ТРАНСМИССИИ, Diagnostic DTC:P0560

DTC Code DTC Name
P0560 System Voltage

DESCRIPTION

The battery supplies electricity to the TCM even when the engine switch is off. This power allows the TCM to store data such as DTC history and freeze frame data. If the battery voltage falls below a minimum level, the stored TCM data is cleared and the TCM determines that there is a malfunction in the power supply circuit. The next time the engine is started, the TCM will illuminate the MIL and store this DTC.

DTC No. DTC Detection Condition Trouble Area
P0560 TCM back-up power source circuit low voltage (1 trip detection logic)

  • Back-up power source circuit

  • TCM

Tech Tips

If DTC P0560 is set, the TCM does not store other DTCs.

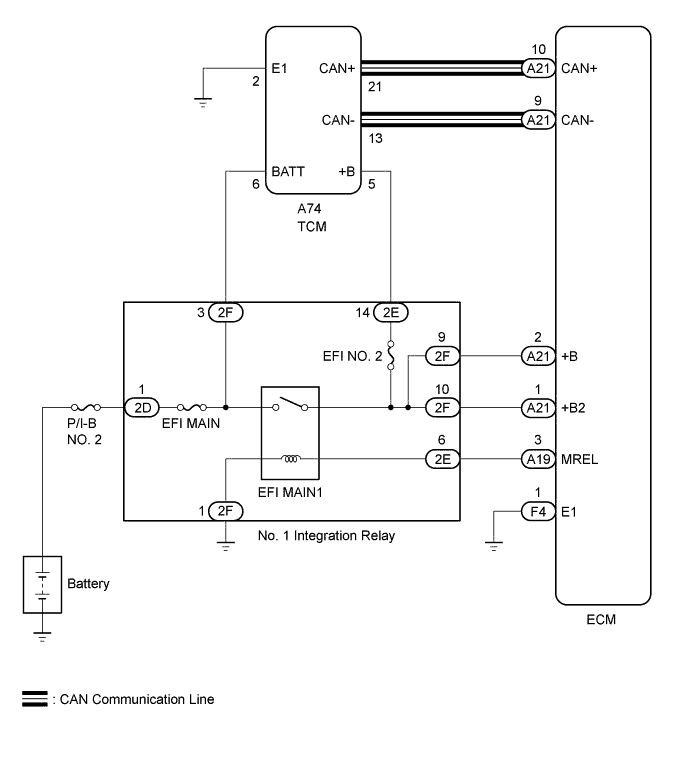

WIRING DIAGRAM

A01FDA4E01

INSPECTION PROCEDURE

Note

Perform registration and/or initialization when parts related to the automatic transmission are replaced Click here.

PROCEDURE


  1. CHECK TCM (POWER SOURCE, GROUND)

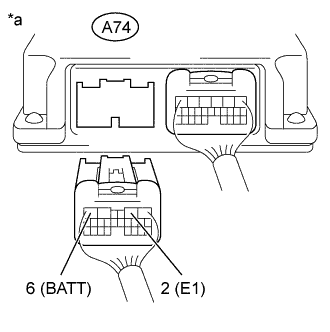

    1. A01FE4UE01
      Text in Illustration
      *a

      Rear view of wire harness connector

      (to TCM)

      Disconnect the TCM connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      A74-6 (BATT) - A74-2 (E1) Always 11 to 14 V

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A74-2 (E1) - Body ground Always Below 1 Ω

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (TCM - BATTERY, BODY GROUND)

    OK

  2. REPLACE TCM


    1. Replace the TCM Click here.


    NEXT

    PERFORM A/T CODE REGISTRATION Click here
