FUEL PRESSURE SENSOR INSTALLATION


  1. INSTALL FUEL PRESSURE SENSOR


    1. Install a new gasket to the fuel pressure sensor.

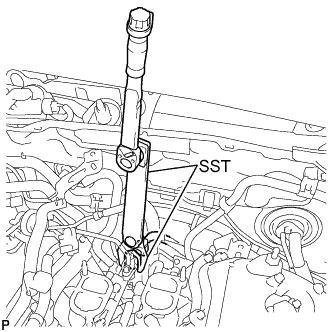

    2. A01FFDOE01

      Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.

      SST
      09922-10240
      09961-01270
      Torque:
      without SST
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }
      with SST
      23 N*m  { 235 kgf*cm, 17 ft.*lbf }

      Tech Tips


      • This torque value is effective when SST is parallel to the torque wrench.

      • This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a fulcrum length of 240 mm (9.45 in.).


      • If using a torque wrench with a length that is not 300 mm (11.8 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification Click here.

    3. A01FH9EE01
      Text in Illustration
      *1 Wire Harness

      Connect the connector with the clamp.

      Note


      • Make sure the wire harness of the fuel pressure sensor passes under the area labeled A as shown in the illustration.

      • Do not pull the wire harness of the fuel pressure sensor excessively.

  2. INSTALL NO. 3 WATER BY-PASS PIPE


    1. Connect the 2 water by-pass hoses and install the No. 3 water by-pass pipe.

    2. Install the bolt.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    3. Attach the wire harness clamp to the No. 3 water by-pass pipe.

    4. Connect the 2 heater water hoses.

  3. INSTALL FUEL RELIEF VALVE ASSEMBLY

    Click here
