COMBINATION METER (w/o Multi-information Display) INSTALLATION


  1. INSTALL COMBINATION METER ASSEMBLY

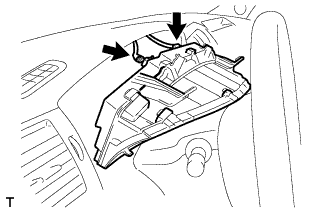

    1. A0157WK

      Connect the connectors.

    2. A015B49

      Install the combination meter with the 4 screws.

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY


    1. A015ADU

      Attach the 9 claws to install the finish panel.

    2. A01580Y

      Attach the 4 claws.

  3. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH


    1. A015B36

      Attach the 2 claws to install the panel garnish.

  4. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH


    1. w/ Entry and Start System:

      Click here

    2. w/o Entry and Start System:

      Click here

  5. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION


    1. A015DQB

      Attach the 7 claws to install the panel cushion.

  6. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH


    1. A01555F

      Attach the 3 claws to install the panel garnish.

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note


    • Reset the Autoaway/Return function setting to the previous condition by changing the customize parameter Click here.

    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.
