CAN COMMUNICATION SYSTEM(w/o Central Gateway ECU) Audio Receiver Assembly Communication Stop Mode

Click here
Click here
DTC Code DTC Name
  Audio Receiver Assembly Communication Stop Mode
Click here

DESCRIPTION

Detection Item Symptom Trouble Area
Audio Receiver Assembly Communication Stop Mode

Either condition is met:


  • "Display and Navigation (AVN1)" is not displayed on the CAN Bus Check screen of the GTS (Click here)

  • Communication system DTCs (DTCs that start with U) that correspond to "Audio Receiver Assembly Communication Stop Mode" in "DTC Combination Table" are output (Click here)

  • Radio receiver assembly branch line or connector

  • Power source circuit of radio receiver assembly

  • Radio receiver assembly ground circuit

  • Radio receiver assembly
A0003G7E03
A0003G7E06
A0008QGE03
A0009HTE02
Click here

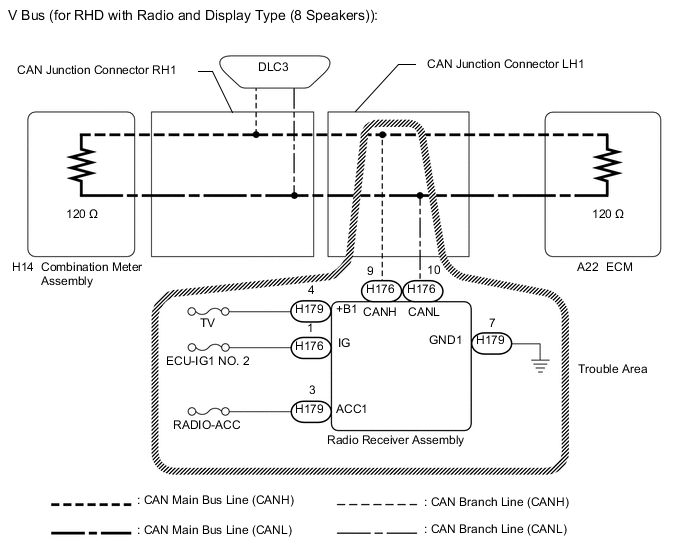

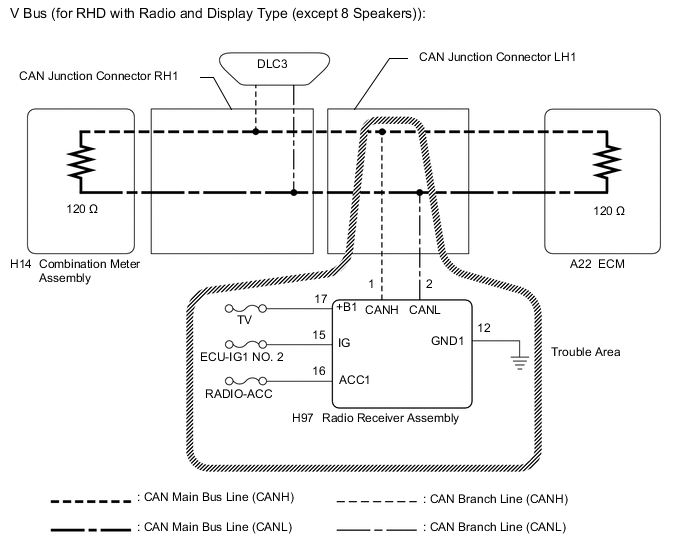

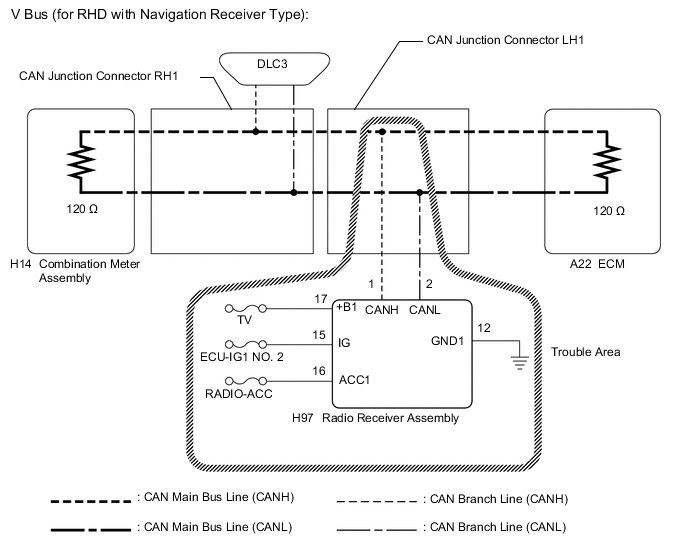

WIRING DIAGRAM

Click here

CAUTION / NOTICE / HINT

Note:

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Click here).

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output (Click here).

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

  • DTC check procedure: Turn the power switch on (IG) and wait at least 31 seconds.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed (Click here).

Tip:

  • Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

  • Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

Click here

PROCEDURE


  1. Click here

    CHECK VEHICLE TYPE


    1. Check Vehicle type.

      Result
      Result Proceed to
      for Radio and Display Type (8 Speakers) A
      for Radio and Display Type (except 8 Speakers) B
      for Navigation Receiver Type C

  2. Click here

    CHECK FOR OPEN IN CAN BUS LINES (RADIO RECEIVER ASSEMBLY BRANCH LINE)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. A0005Z1E01

      Disconnect the H176 radio receiver assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H176-9 (CANH) - H176-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Table 1. Text in Illustration
      *a

      Front view of wire harness connector

      (to Radio Receiver Assembly)

    • OKClick here
    • NG

      REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

  3. Click here

    CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)


    1. Disconnect the H179 radio receiver assembly connector.

    2. A00080TE02

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H179-7 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      Table 2. Text in Illustration
      *a

      Front view of wire harness connector

      (to Radio Receiver Assembly)

    3. Connect the cable to the negative (-) auxiliary battery terminal.

    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      H179-3 (ACC1) - Body ground Power switch on (ACC) 11 to 14 V
      H179-4 (+B1) - Body ground Power switch off 11 to 14 V
      H176-1 (IG) - Body ground Power switch on (IG) 11 to 14 V

    • OK

      REPLACE RADIO RECEIVER ASSEMBLY (Click here)

    • NG

      REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

  4. Click here

    CHECK OPEN IN CAN BUS WIRE (RADIO RECEIVER ASSEMBLY BRANCH LINE)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. A0008AHE01

      Disconnect the H97 radio receiver assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-1 (CANH) - H97-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Table 3. Text in Illustration
      *a

      Front view of wire harness connector

      (to Radio Receiver Assembly)

    • OKClick here
    • NG

      REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

  5. Click here

    CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)


    1. A0007H5E01

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-12 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

    2. Connect the cable to the negative (-) auxiliary battery terminal.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      H97-15 (IG) - Body ground Power switch on (IG) 11 to 14 V
      H97-16 (ACC1) - Body ground Power switch on (ACC) 11 to 14 V
      H97-17 (+B1) - Body ground Power switch off 11 to 14 V
      Table 4. Text in Illustration
      *a

      Front view of wire harness connector

      (to Radio Receiver Assembly)

    • OK

      REPLACE RADIO RECEIVER ASSEMBLY (Click here)

    • NG

      REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

  6. Click here

    CHECK OPEN IN CAN BUS WIRE (RADIO RECEIVER ASSEMBLY BRANCH LINE)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. A0008AHE01

      Disconnect the H97 radio receiver assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-1 (CANH) - H97-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Table 5. Text in Illustration
      *a

      Front view of wire harness connector

      (to Radio Receiver Assembly)

    • OKClick here
    • NG

      REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

  7. Click here

    CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)


    1. A0007H5E01

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-12 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

    2. Connect the cable to the negative (-) auxiliary battery terminal.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      H97-15 (IG) - Body ground Power switch on (IG) 11 to 14 V
      H97-16 (ACC1) - Body ground Power switch on (ACC) 11 to 14 V
      H97-17 (+B1) - Body ground Power switch off 11 to 14 V
      Table 6. Text in Illustration
      *a

      Front view of wire harness connector

      (to Radio Receiver Assembly)

    • OK

      REPLACE RADIO RECEIVER ASSEMBLY (Click here)

    • NG

      REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
