CAN COMMUNICATION SYSTEM(w/o Central Gateway ECU) SYSTEM DESCRIPTION

BRIEF DESCRIPTION
1. The Controller Area Network (CAN) is a serial data communication system for real time application. It is a vehicle multiplex communication system which has a high communication speed and the ability to detect malfunctions.
2. Using the CANH and CANL bus lines as a pair, CAN communication is performed using a voltage differential. (A base voltage is applied to the pair of lines and a voltage differential is created when communicating.)
3. Many ECUs or sensors installed on the vehicle operate by sharing information and communicating with each other.
4. The CAN has two resistors of 120 Ω which are necessary to enable communication.

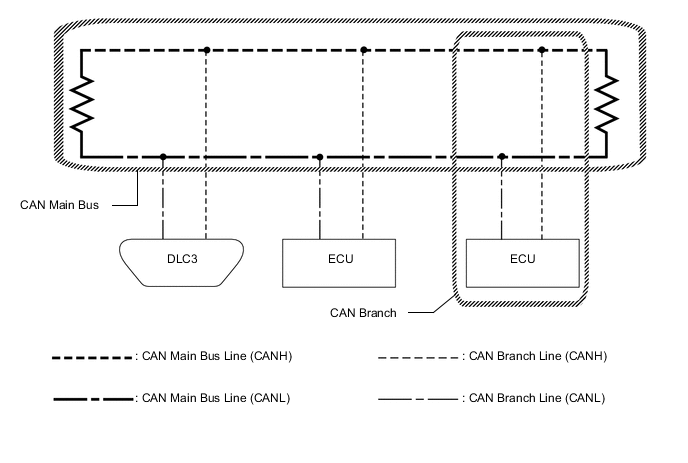

DEFINITION OF TERMS
1. Main bus
  1. The main bus is a wire harness between the two terminating resistors on the bus. This is the main bus in the CAN communication system.
2. Branch
  1. A branch is a wire harness which diverges from the main bus to an ECU or sensor.
3. Terminating resistors
  1. Two resistors of 120 Ω are installed in parallel across the ends of the CAN main bus lines. They are called terminating resistors. These resistors allow the changes of the voltage differential between the CAN bus lines to be accurately judged. To allow proper function of CAN communication, it is necessary to have both terminating resistors installed. Since the two resistors are installed in parallel, this results in a measurement of approximately 60 Ω.
ECUS OR SENSORS WHICH COMMUNICATE THROUGH CAN COMMUNICATION SYSTEM (for LHD)
1. V Bus
  1. Combination meter assembly
  2. Main body ECU (multiplex network body ECU)
  3. Steering sensor
  4. Power management control ECU
  5. Brake booster with master cylinder assembly (skid control ECU)
  6. Power steering ECU with motor assembly
  7. Airbag sensor assembly
  8. Air conditioning amplifier assembly
  9. ECM
  10. Certification ECU (smart key ECU assembly)
  11. Multi-media module receiver assembly*1
  12. Radio receiver assembly*9
  13. Clearance warning ECU assembly
  14. Telematics transceiver*10
2. Sub Bus 1
  1. Main body ECU (multiplex network body ECU)
  2. Multiplex tilt and telescopic ECU*2
  3. Outer mirror control ECU assembly LH*2
  4. Outer mirror control ECU assembly RH*2
  5. Front power seat switch LH*2
  6. Front power seat switch RH*3
  7. Luggage closer motor assembly*4
3. Sub Bus 11*7
  1. Power management control ECU
  2. Seat belt control ECU
  3. Driving support ECU assembly
  4. Blind spot monitor sensor LH*5
4. Sub Bus 11*8
  1. Power management control ECU
  2. Lane departure warning camera*6
  3. Blind spot monitor sensor LH*5
5. Sub Bus 13*7
  1. Driving support ECU assembly
  2. Lane departure warning camera*6
  3. Millimeter wave radar sensor assembly
6. Sub Bus 15
  1. ECM
  2. Power management control ECU
  3. Brake booster with master cylinder assembly (skid control ECU)

    Tech Tips

    *1: for Navigation Receiver Type

    *2: w/ Seat Position Memory System (for Driver Side)

    *3: w/ Seat Position Memory System (for Front Passenger Side)

    *4: w/ Power Trunk Lid System

    *5: w/ Blind Spot Monitor System

    *6: w/ Lane Departure Alert System

    *7: w/ Dynamic Radar Cruise Control System

    *8: w/o Dynamic Radar Cruise Control System

    *9: for Radio and Display Type

    *10: w/ Manual (SOS) Switch
ECUS OR SENSORS WHICH COMMUNICATE THROUGH CAN COMMUNICATION SYSTEM (for RHD)
1. V Bus
  1. Combination meter assembly
  2. Main body ECU (multiplex network body ECU)
  3. Steering sensor
  4. Power management control ECU
  5. Brake booster with master cylinder assembly (skid control ECU)
  6. Power steering ECU with motor assembly
  7. Airbag sensor assembly
  8. Air conditioning amplifier assembly
  9. ECM
  10. Certification ECU (smart key ECU assembly)
  11. Multi-media module receiver assembly*1
  12. Radio receiver assembly*7
  13. Clearance warning ECU assembly
2. Sub Bus 1
  1. Main body ECU (multiplex network body ECU)
  2. Multiplex tilt and telescopic ECU*2
  3. Outer mirror control ECU assembly LH
  4. Outer mirror control ECU assembly RH
  5. Front power seat switch LH*3
  6. Front power seat switch RH
  7. Luggage closer motor assembly*4
  8. Rear television camera assembly*8
3. Sub Bus 11
  1. Power management control ECU
  2. Blind spot monitor sensor LH*5
  3. Seat belt control ECU*6
  4. Driving support ECU assembly*6
4. Sub Bus 13*6
  1. Driving support ECU assembly
  2. Millimeter wave radar sensor assembly
5. Sub Bus 15
  1. ECM
  2. Power management control ECU
  3. Brake booster with master cylinder assembly (skid control ECU)

    Tech Tips

    *1: for Navigation Receiver Type

    *2: w/ Power Tilt and Power Telescopic Steering Column System

    *3: w/ Seat Position Memory System (for Front Passenger Side)

    *4: w/ Power Trunk Lid System

    *5: w/ Blind Spot Monitor System

    *6: w/ Dynamic Radar Cruise Control System

    *7: for Radio and Display Type

    *8: for Radio and Display Type (w/ Parking Assist Monitor System without Parallel Parking Assist Function)
CIRCUIT DESCRIPTION
1. The V bus, sub bus 1, sub bus 11, sub bus 13 and sub bus 15 each have termination circuits with two resistors of 120 Ω.
TROUBLESHOOTING REMARKS
1. DTCs for the CAN communication system can be checked using the GTS. The DLC3 is connected to the CAN communication system, but no DTCs exist regarding problems in the DLC3 or the DLC3 branch lines. If there is a malfunction in the DLC3 or the DLC3 branch lines, ECUs on the CAN cannot output DTCs to the GTS.
2. Malfunctions in the CAN V bus (communication lines) can be checked by measuring the resistance between terminals of the DLC3. However, an open circuit in a branch line other than the DLC3 branch lines cannot be checked from the DLC3 (except for the DLC3 branch lines).

  Note

  Do not insert the tester probes directly into the DLC3. Be sure to use service wires.
DIAGNOSTIC TROUBLE CODES FOR CAN COMMUNICATION SYSTEM

Tech Tips

See Diagnosis System Click here.
HOW TO DISTINGUISH CONNECTOR OF CAN JUNCTION CONNECTOR
1. In the CAN communication system, the shape of connectors connected to the CAN junction connector which has an earth terminal are the same. The connectors connected to the CAN junction connector can be distinguished by the colors of the bus lines and the connecting side of the junction connector.

  Tech Tips

  See Terminals of ECU for bus line color or the shape of connectors Click here.
