CAN COMMUNICATION SYSTEM(for RHD) TERMINALS OF ECU

Note


  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  • Turn the power switch off before measuring the resistances between CAN main bus lines and between CAN branch lines.

  • Turn the power switch off before inspecting CAN bus lines for a ground short.

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • This section describes the standard values for all CAN related components.

Tech Tips


  • Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

  • Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.


  1. NO. 1 CAN JUNCTION CONNECTOR


    1. Check the No. 1 CAN junction connector.


      1. Connection diagram

        A01MICAC03
        *a

        Front view of wire harness connector

        (to No. 1 CAN Junction Connector)

        		 *b

        to No. 4 CAN Junction Connector

        (for Sub Bus 2)
        *c

        to No. 2 CAN Junction Terminal

        (for Sub Bus 2)

        		 *d

        to Blind Spot Monitor Sensor RH

        (for Sub Bus 2)

      2. Check the connection diagram of the components which are connected to the No. 1 CAN junction connector.

        Terminal No. (Symbol) Wiring Color Connected to
        Q32-1 (CANH) SB

        No. 4 CAN junction connector

        (for Sub bus 2)
        Q32-2 (CANL) W
        Q33-1 (CANH) G

        No. 2 CAN junction terminal

        (for Sub bus 2)
        Q33-2 (CANL) W
        Q34-1 (CANH) GR

        Blind spot monitor sensor RH

        (for Sub bus 2)
        Q34-2 (CANL) W

  2. NO. 2 CAN JUNCTION CONNECTOR


    1. Check the No. 2 CAN junction connector.


      1. Connection diagram

        A01MHGAC15
        *a

        Front view of wire harness connector

        (to No. 2 CAN Junction Connector)

        		 *b

        to Skid Control ECU (Brake Booster with Master Cylinder Assembly)

        (for V Bus)
        *c

        to FC Control ECU

        (for V Bus)

        		 *d

        to No. 3 CAN Junction Connector

        (for V Bus)
        *e

        to EV Control ECU

        (for V Bus)

        		 *f

        to FC Converter Assembly

        (for V Bus)
        *g

        to Airbag ECU Assembly

        (for V Bus)

        		 *h

        to Air Conditioning Amplifier Assembly

        (for V Bus)
        *i

        to Main Body ECU (Multiplex Network Body ECU)

        (for V Bus)

        		 - -

      2. Check the connection diagram of the components which are connected to the No. 2 CAN junction connector.

        Terminal No. (Symbol) Wiring Color Connected to
        G84-1 (CANH) B

        Skid control ECU (brake booster with master cylinder assembly)

        (for V Bus)
        G84-11 (CANL) W
        G84-2 (CANH) B

        FC control ECU

        (for V Bus)
        G84-12 (CANL) W
        G84-3 (CANH) BE

        No. 3 CAN junction connector

        (for V Bus)
        G84-13 (CANL) W
        G84-5 (CANH) GR

        EV control ECU

        (for V Bus)
        G84-15 (CANL) W
        G84-6 (CANH) B

        FC converter assembly

        (for V Bus)
        G84-16 (CANL) W
        G84-7 (CANH) Y

        Airbag ECU assembly

        (for V Bus)
        G84-17 (CANL) W
        G84-8 (CANH) LG

        Air conditioning amplifier assembly

        (for V Bus)
        G84-18 (CANL) W
        G84-9 (CANH) BR

        Main body ECU (multiplex network body ECU)

        (for V Bus)
        G84-19 (CANL) W

  3. NO. 3 CAN JUNCTION CONNECTOR


    1. Check the No. 3 CAN junction connector.


      1. Connection diagram

        A01MHGAC14
        *a

        Front view of wire harness connector

        (to No. 3 CAN Junction Connector)

        		 *b

        to Power Steering ECU Assembly

        (for V Bus)
        *c

        to Certification ECU (Smart Key ECU Assembly)

        (for V Bus)

        		 *d

        to Radio and Display Receiver Assembly

        (for V Bus)
        *e

        to Spiral Cable with Sensor Sub-assembly

        (for V Bus)

        		 *f

        to No. 2 CAN Junction Connector

        (for V Bus)
        *g

        to Network Gateway ECU

        (for V Bus)

        		 *h

        to DLC3

        (for V Bus)
        *i

        to Combination Meter Assembly

        (for V Bus)

        		 *j

        to Integration Control and Panel Assembly

        (for V Bus)

      2. Check the connection diagram of the components which are connected to the No. 3 CAN junction connector.

        Terminal No. (Symbol) Wiring Color Connected to
        G85-1 (CANH) R

        Power steering ECU assembly

        (for V Bus)
        G85-11 (CANL) W
        G85-2 (CANH) Y

        Certification ECU (smart key ECU assembly)

        (for V Bus)
        G85-12 (CANL) W
        G85-3 (CANH) G

        Radio and display receiver assembly

        (for V Bus)
        G85-13 (CANL) W
        G85-4 (CANH) V

        Spiral cable with sensor sub-assembly

        (for V Bus)
        G85-14 (CANL) W
        G85-5 (CANH) BE

        No. 2 CAN junction connector

        (for V Bus)
        G85-15 (CANL) W
        G85-6 (CANH) L

        Network gateway ECU

        (for V Bus)
        G85-16 (CANL) W
        G85-7 (CANH) GR

        DLC3

        (for V Bus)
        G85-17 (CANL) W
        G85-8 (CANH) LG

        Combination meter assembly

        (for V Bus)
        G85-18 (CANL) W
        G85-9 (CANH) BR

        Integration control and panel assembly

        (for V Bus)
        G85-19 (CANL) W

  4. NO. 4 CAN JUNCTION CONNECTOR


    1. Check the No. 4 CAN junction connector.


      1. Connection diagram

        A01MHGAC13
        *a

        Front view of wire harness connector

        (to No. 4 CAN Junction Connector)

        		 *b

        to Skid Control ECU (Brake Booster with Master Cylinder Assembly)

        (for Sub Bus 2)
        *c

        to Transmission Control ECU Assembly

        (for Sub Bus 2)

        		 *d

        to No. 1 CAN Junction Connector

        (for Sub Bus 2)
        *e

        to Network Gateway ECU

        (for Sub Bus 2)

        		 *f

        to EV Control ECU

        (for Sub Bus 2)
        *g

        to Driving Support ECU Assembly

        (for Sub Bus 2)

        		 *h

        to Clearance Warning ECU Assembly

        (for Sub Bus 2)

      2. Check the connection diagram of the components which are connected to the No. 4 CAN junction connector.

        Terminal No. (Symbol) Wiring Color Connected to
        G86-1 (CANH) B

        Skid control ECU (brake booster with master cylinder assembly)

        (for Sub Bus 2)
        G86-11 (CANL) W
        G86-3 (CANH) B

        Transmission control ECU assembly

        (for Sub Bus 2)
        G86-13 (CANL) W
        G86-4 (CANH) SB

        No. 1 CAN junction connector

        (for Sub Bus 2)
        G86-14 (CANL) W
        G86-5 (CANH) LG

        Network gateway ECU

        (for Sub Bus 2)
        G86-15 (CANL) W
        G86-6 (CANH) P

        EV control ECU

        (for Sub Bus 2)
        G86-16 (CANL) W
        G86-7 (CANH) BR

        Driving support ECU assembly

        (for Sub Bus 2)
        G86-17 (CANL) W
        G86-8 (CANH) B

        Clearance warning ECU assembly

        (for Sub Bus 2)
        G86-18 (CANL) W

  5. NO. 6 CAN JUNCTION CONNECTOR


    1. Check the No. 6 CAN junction connector.


      1. Connection diagram

        A01MFQ1C07
        *a

        Front view of wire harness connector

        (to No. 6 CAN Junction Connector)

        		 *b

        to Main Body ECU (Multiplex Network Body ECU)

        (for Sub Bus 1)
        *c

        to No. 7 CAN Junction Connector

        (for Sub Bus 1)

        		 *d

        to Multiplex Tilt and Telescopic ECU

        (for Sub Bus 1)
        *e

        to Outer Mirror Control ECU Assembly LH

        (for Sub Bus 1)

        		 *f

        to Outer Mirror Control ECU Assembly RH

        (for Sub Bus 1)
        *g

        to Headlight Light Control ECU Sub-assembly LH

        (for Sub Bus 1)

        		 - -

      2. Check the connection diagram of the components which are connected to the No. 6 CAN junction connector.

        Terminal No. (Symbol) Wiring Color Connected to
        G88-1 (CANH) SB

        Main body ECU (multiplex network body ECU)

        (for Sub Bus 1)
        G88-2 (CANL) W
        G88-4 (CANH) L

        No. 7 CAN junction connector

        (for Sub Bus 1)
        G88-5 (CANL) W
        G88-7 (CANH) V

        Multiplex tilt and telescopic ECU

        (for Sub Bus 1)
        G88-8 (CANL) W
        G89-6 (CANH) P

        Outer mirror control ECU assembly LH

        (for Sub Bus 1)
        G89-5 (CANL) W
        G89-9 (CANH) BR

        Outer mirror control ECU assembly RH

        (for Sub Bus 1)
        G89-8 (CANL) W
        G89-12 (CANH) B

        Headlight light control ECU sub-assembly LH

        (for Sub Bus 1)
        G89-11 (CANL) W

  6. NO. 7 CAN JUNCTION CONNECTOR


    1. Check the No. 7 CAN junction connector.


      1. Connection diagram

        A01MIIDC02
        *a

        Front view of wire harness connector

        (to No. 7 CAN Junction Connector)

        		 *b

        to No. 6 CAN Junction Connector

        (for Sub Bus 1)
        *c

        to No. 1 CAN Junction Terminal

        (for Sub Bus 1)

        		 *d

        to Position Control ECU and Switch Assembly

        (for Sub Bus 1)

      2. Check the connection diagram of the components which are connected to the No. 7 CAN junction connector.

        Terminal No. (Symbol) Wiring Color Connected to
        Q31-1 (CANH) L

        No. 6 CAN junction connector

        (for Sub bus 1)
        Q31-11 (CANL) W
        Q31-2 (CANH) G

        No. 1 CAN junction terminal

        (for Sub bus 1)
        Q31-12 (CANL) W
        Q31-3 (CANH) SB

        Position control ECU and switch assembly

        (for Sub bus 1)
        Q31-13 (CANL) W

  7. JUNCTION TERMINAL (NO. 1 CAN JUNCTION TERMINAL)


    1. Check the junction terminal.


      1. Connection diagram

        A01MI1UC44
        *a

        Front view of wire harness connector

        (to No. 1 CAN Junction Terminal)

        		 *b

        to No. 7 CAN Junction Connector

        (for Sub Bus 1)

      2. Check the connection diagram of the components which are connected to the junction terminal.

        Terminal No. (Symbol) Wiring Color Connected to
        Q35-3 (CANP) G

        No. 7 CAN junction connector

        (for Sub bus 1)
        Q35-2 (CANN) W

  8. JUNCTION TERMINAL (NO. 2 CAN JUNCTION TERMINAL)


    1. Check the junction terminal.


      1. Connection diagram

        A01MI1UC45
        *a

        Front view of wire harness connector

        (to No. 2 CAN Junction Terminal)

        		 *b

        to No. 1 CAN Junction Connector

        (for Sub Bus 2)

      2. Check the connection diagram of the components which are connected to the junction terminal.

        Terminal No. (Symbol) Wiring Color Connected to
        Q36-3 (CANH) G

        No. 1 CAN junction connector

        (for Sub bus 2)
        Q36-2 (CANL) W

  9. DLC3


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. Measure the resistance according to the value(s) in the table below.

      A01MFW1C34
      *1 DLC3 - -

    3. FC CONTROL ECU


      1. Disconnect the cable from the negative (-) auxiliary battery terminal.

      2. A01MG26C03
      4. *a

      Front view of wire harness connector

      (to FC Control ECU)

Disconnect the FC control ECU connector.

  • Measure the resistance according to the value(s) in the table below.

  • EV CONTROL ECU


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. A01MHDPC05
    • *a

    Rear view of wire harness connector

    (to EV Control ECU)

    • Disconnect the EV control ECU connectors.

  • Measure the resistance according to the value(s) in the table below.

  • FC CONVERTER ASSEMBLY

    A01MFNQC02
    • *a

    Component without harness connected

    (FC Converter Assembly)

    		 - -

    CAUTION:

    Be sure to wear insulated gloves.


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. Check that the service plug grip is not installed to FC stack assembly and EV battery.

      Note

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

    3. A01MHMW

      Disconnect the FC converter assembly connector.

    4. A01MJ16C06
      *a

      Front view of wire harness connector

      (to FC Converter Assembly)

      Measure the resistance according to the value(s) in the table below.

    5. COMBINATION METER ASSEMBLY


      1. Disconnect the cable from the negative (-) auxiliary battery terminal.

      2. A01MJX0C08
      6. *a

      Front view of wire harness connector

      (to Combination Meter Assembly)

      Disconnect the combination meter assembly connector.

    6. Measure the resistance according to the value(s) in the table below.

    7. INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

      A01MIPCC09
      8. *1 Main Body ECU (Multiplex Network Body ECU) - -
      *a

      Component without harness connected

      (Instrument Panel Junction Block Assembly and Main Body ECU (Multiplex Network Body ECU))

      		 - -

      1. Disconnect the cable from the negative (-) auxiliary battery terminal.

      2. Disconnect the main body ECU (multiplex network body ECU) connectors.

        A01MJV0C23
        *1 DLC3 - -
        *a

        Front view of wire harness connector

        (to Main Body ECU (Multiplex Network Body ECU))

        		 - -

      3. Measure the resistance according to the value(s) in the table below.

      4. SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)


        1. Disconnect the cable from the negative (-) auxiliary battery terminal.

        2. A01MI9DC02
        5. *a

        Front view of wire harness connector

        (to Skid Control ECU (Brake Booster with Master Cylinder Assembly))

        Disconnect the skid control ECU (brake booster with master cylinder assembly) connector.

      5. Measure the resistance according to the value(s) in the table below.

      6. SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY


        1. Disconnect the cable from the negative (-) auxiliary battery terminal.

        2. A01MHLWC05
        7. *a

        Front view of wire harness connector

        (to Spiral Cable with Sensor Sub-assembly)

        Disconnect the spiral cable with sensor sub-assembly connector.

      7. Measure the resistance according to the value(s) in the table below.

      8. TRANSMISSION CONTROL ECU ASSEMBLY


        1. Disconnect the cable from the negative (-) auxiliary battery terminal.

        2. A01MHEBC01
        9. *a

        Front view of wire harness connector

        (to Transmission Control ECU Assembly)

        Disconnect the transmission control ECU assembly connectors.

      9. Measure the resistance according to the value(s) in the table below.

      10. POWER STEERING ECU ASSEMBLY


        1. Disconnect the cable from the negative (-) auxiliary battery terminal.

        2. A01MFNCC03
        11. *a

        Front view of wire harness connector

        (to Power Steering ECU Assembly)

        Disconnect the power steering ECU assembly connectors.

      11. Measure the resistance according to the value(s) in the table below.

      12. AIRBAG ECU ASSEMBLY

        A01MH3GC26
        13. *a

        Component without harness connected

        (Airbag ECU Assembly)

        		 - -

        1. Disconnect the cable from the negative (-) auxiliary battery terminal.

        2. Disconnect the airbag ECU assembly connector.

          A01MGY8C40
          *1 DLC3 - -
          *a

          Front view of wire harness connector

          (to Airbag ECU Assembly)

          		 - -

        3. Measure the resistance according to the value(s) in the table below.

        4. CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MFTXC05
          5. *a

          Front view of wire harness connector

          (to Certification ECU (Smart Key ECU Assembly))

          Disconnect the certification ECU (smart key ECU assembly) connector.

        5. Measure the resistance according to the value(s) in the table below.

        6. RADIO AND DISPLAY RECEIVER ASSEMBLY


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MHV3C02
          7. *a

          Front view of wire harness connector

          (to Radio and Display Receiver Assembly)

          Disconnect the radio and display receiver assembly connector.

        7. Measure the resistance according to the value(s) in the table below.

        8. AIR CONDITIONING AMPLIFIER ASSEMBLY


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MH9JC18
          9. *a

          Front view of wire harness connector

          (to Air Conditioning Amplifier Assembly)

          Disconnect the air conditioning amplifier assembly connector.

        9. Measure the resistance according to the value(s) in the table below.

        10. NETWORK GATEWAY ECU


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MGXEC09
          11. *a

          Front view of wire harness connector

          (to Network Gateway ECU)

          Disconnect the network gateway ECU connector.

        11. Measure the resistance according to the value(s) in the table below.

        12. HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MIXVC05
          13. *1 DLC3
          *a

          Front view of wire harness connector

          (to Headlight Light Control ECU Sub-assembly LH)

          Disconnect the headlight light control ECU sub-assembly LH connector.

        13. Measure the resistance according to the value(s) in the table below.

        14. OUTER MIRROR CONTROL ECU ASSEMBLY LH


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MGP6C92
          15. *a

          Front view of wire harness connector

          (to Outer Mirror Control ECU Assembly LH)

          Disconnect the outer mirror control ECU assembly LH connector.

        15. Measure the resistance according to the value(s) in the table below.

        16. OUTER MIRROR CONTROL ECU ASSEMBLY RH


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MGP6C93
          17. *a

          Front view of wire harness connector

          (to Outer Mirror Control ECU Assembly RH)

          Disconnect the outer mirror control ECU assembly RH connector.

        17. Measure the resistance according to the value(s) in the table below.

        18. POSITION CONTROL ECU AND SWITCH ASSEMBLY


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MGNUC37
          19. *a

          Front view of wire harness connector

          (to Position Control ECU and Switch Assembly)

          Disconnect the position control ECU and switch assembly connectors.

        19. Measure the resistance according to the value(s) in the table below.

        20. MULTIPLEX TILT AND TELESCOPIC ECU


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MHRFC51
          21. *a

          Front view of wire harness connector

          (to Multiplex Tilt and Telescopic ECU)

          Disconnect the multiplex tilt and telescopic ECU connector.

        21. Measure the resistance according to the value(s) in the table below.

        22. BLIND SPOT MONITOR SENSOR RH


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

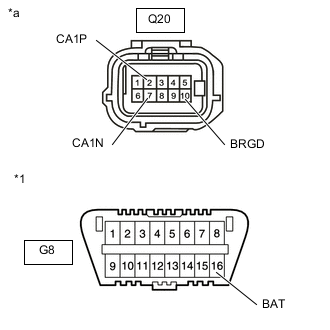

          2. A01MHDYC08
          23. *1 DLC3
          *a

          Front view of wire harness connector

          (to Blind Spot Monitor Sensor RH)

          Disconnect the blind spot monitor sensor RH connector.

        23. Measure the resistance according to the value(s) in the table below.

        24. DRIVING SUPPORT ECU ASSEMBLY


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MI3VC01
          25. *1 DLC3
          *a

          Front view of wire harness connector

          (to Driving Support ECU Assembly)

          Disconnect the driving support ECU assembly connector.

        25. Measure the resistance according to the value(s) in the table below.

        26. INTEGRATION CONTROL AND PANEL ASSEMBLY


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MHVTC05
          27. *a

          Front view of wire harness connector

          (to Integration Control and Panel Assembly)

          Disconnect the integration control and panel assembly connector.

        27. Measure the resistance according to the value(s) in the table below.

        28. CLEARANCE WARNING ECU ASSEMBLY


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MJ66C06
          29. *1 DLC3
          *a

          Front view of wire harness connector

          (to Clearance Warning ECU Assembly)

          Disconnect the clearance warning ECU assembly connector.

        29. Measure the resistance according to the value(s) in the table below.

        30. DIAGNOSIS DATA RECORD ECU (w/ Diagnosis Recorder ECU)


          1. Disconnect the cable from the negative (-) auxiliary battery terminal.

          2. A01MGO0C05
          31. *a

          Front view of wire harness connector

          (to Diagnosis Data Record ECU)

          Disconnect the diagnosis data record ECU connector.

        31. Measure the resistance according to the value(s) in the table below.
