BRAKE BOOSTER(for LHD) REMOVAL

CAUTION / NOTICE / HINT

Note

Make sure to release the vacuum from the brake booster before removing the master cylinder from the brake booster.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  3. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Click here

  4. REMOVE COWL VENTILATOR HOUSING SUB-ASSEMBLY

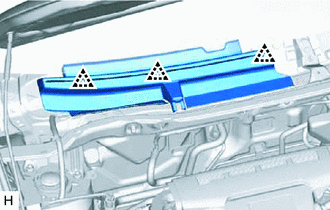

    1. A01QSHZ

      Disengage the 3 clips and remove the cowl ventilator housing sub-assembly.

  5. REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY

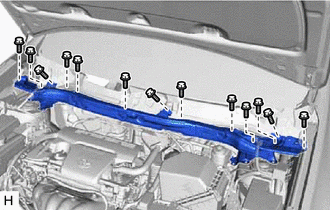

    1. A01QQBK

      Remove the 13 bolts and cowl top panel outer sub-assembly.

  6. REMOVE COWL BODY MOUNTING REINFORCEMENT LH

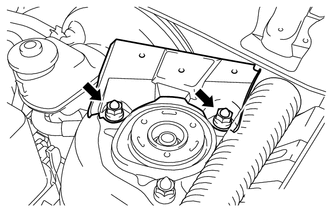

    1. A01QTWA

      Remove the 2 nuts and cowl body mounting reinforcement LH.

  7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY


    1. for 2AR-FE:

      Click here

    2. for 3ZR-FE:

      Click here

    3. for 3ZR-FAE:

      Click here

    4. for 2AD-FHV:

      Click here

    5. for 2AD-FTV:

      Click here

    6. for 2WW:

      Click here

  8. DRAIN BRAKE FLUID

    Note

    Wash off brake fluid immediately if it comes in contact with any painted surface.

  9. REMOVE BRAKE ACTUATOR ASSEMBLY WITH BRACKET

    Click here

  10. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

    Click here

  11. DISCONNECT VACUUM HOSE


    1. Slide the clip and disconnect the vacuum hose.

  12. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Driver Side Knee Airbag)

    Click here

  13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/o Driver Side Knee Airbag)

    Click here

  14. REMOVE BRAKE PEDAL RETURN SPRING

    Click here

  15. REMOVE PUSH ROD PIN

    Click here

  16. REMOVE BRAKE MASTER CYLINDER PUSH ROD CLEVIS


    1. Loosen the push rod clevis lock nut.

    2. Remove the push rod clevis.

  17. REMOVE BRAKE BOOSTER ASSEMBLY


    1. A01QTHX

      Remove the 4 nuts.

    2. Pull out the brake booster with the brake booster gasket.

  18. REMOVE BRAKE BOOSTER GASKET

  19. REMOVE BRAKE VACUUM CHECK VALVE ASSEMBLY


    1. Remove the brake vacuum check valve assembly from the brake booster.

  20. REMOVE CHECK VALVE GROMMET


    1. Remove the check valve grommet from the brake booster.

  21. REMOVE VACUUM SENSOR ASSEMBLY (w/ Stop And Start System)

    Click here

  22. REMOVE VACUUM SENSOR GROMMET (w/ Stop And Start System)

    Click here
