VEHICLE STABILITY CONTROL SYSTEM, Diagnostic DTC:C1417

DTC Code DTC Name
C1417 High Power Supply Voltage Malfunction

DESCRIPTION

If a malfunction is detected in the power supply circuit, the skid control ECU (brake actuator assembly) stores this DTC and the fail-safe function prohibits ABS operation.

This DTC is stored when the +BS terminal voltage deviates from the DTC detection condition due to a malfunction in the power supply or charging circuit such as the battery or generator circuit, etc.

The DTC is canceled when the +BS terminal voltage returns to normal.

DTC No. Detection Item DTC Detection Condition Trouble Area
C1417 High Power Supply Voltage Malfunction

Either of the following is detected:


  1. The +BS terminal voltage is 17.4 V or more for 0.8 seconds or more.

  2. When voltage at terminal +BS is 17.4 V or higher, power supply voltage of master cylinder pressure sensor is cut for 0.2 seconds or more.

  • Charging system

  • Skid control ECU (Brake actuator assembly)

  • Wire harness or connector

  • ABS NO. 2 fuse

  • Battery

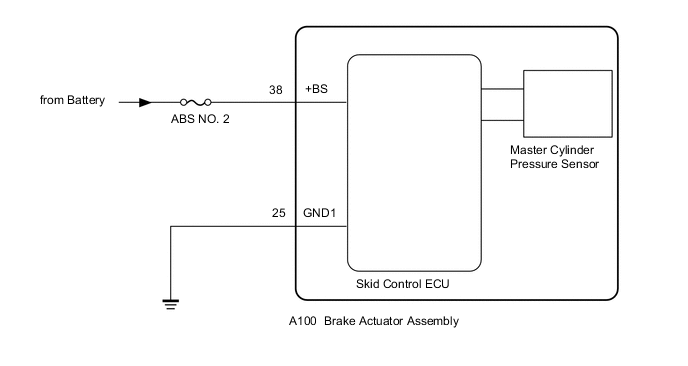

WIRING DIAGRAM

A01V77GE16

CAUTION / NOTICE / HINT

Note

When replacing the skid control ECU (brake actuator assembly), perform zero point calibration.

Click here

PROCEDURE


  1. INSPECT BATTERY


    1. Check the battery voltage.

      Standard voltage
      11 to 14 V
      Result
      Proceed to
      OK
      NG (for 2AD-FHV)
      NG (for 2AD-FTV)
      NG (for 2AR-FE)
      NG (for 3ZR-FAE)
      NG (for 3ZR-FE)
      NG (for 2WW)

    NG (for 2AD-FHV)

    CHECK CHARGING SYSTEM Click here

    NG (for 2AD-FTV)

    CHECK CHARGING SYSTEM Click here

    NG (for 2AR-FE)

    CHECK CHARGING SYSTEM Click here

    NG (for 3ZR-FAE)

    CHECK CHARGING SYSTEM Click here

    NG (for 3ZR-FE)

    CHECK CHARGING SYSTEM Click here

    NG (for 2WW)

    CHECK CHARGING SYSTEM Click here

    OK

  2. CHECK TERMINAL VOLTAGE (+BS TERMINAL)


    1. Turn the ignition switch off.

    2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.

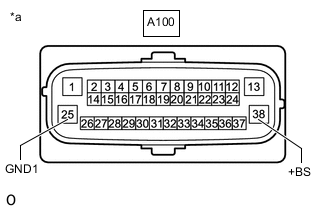

    3. A01V7CNC83
      *a

      Front view of wire harness connector

      (to Skid Control ECU [Brake Actuator Assembly])

      Disconnect the A100 skid control ECU (brake actuator assembly) connector.

    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      A100-38 (+BS) - Body ground Always 11 to 14 V
      A100-38 (+BS) -A100-25 (GND1) Always 11 to 14 V
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (+BS CIRCUIT)

    OK

  3. RECONFIRM DTC


    1. Reconnect the A100 skid control ECU (brake actuator assembly) connector.

    2. Turn the ignition switch off.

    3. Clear the DTCs.

      Click here


      Chassis > ABS/VSC/TRC > Clear DTCs

    4. Check if the same DTC is recorded.

      Click here


      Chassis > ABS/VSC/TRC > Trouble Codes
      Result
      Proceed to
      DTC C1417 is not output
      DTC C1417 is output

    DTC C1417 is not output

    USE SIMULATION METHOD TO CHECK Click here

    DTC C1417 is output

    REPLACE BRAKE ACTUATOR ASSEMBLY Click here
