ВЫКЛЮЧАТЕЛЬ СВЕТА ЗАДНЕГО ХОДА СНЯТИЕ

PROCEDURE


  1. REMOVE NO. 1 ENGINE COVER (w/ No. 1 Engine Cover)


  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (w/ Glow Plug Controller)

    Click here

  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (w/o Glow Plug Controller)

    Click here

  4. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (w/ Glow Plug Controller)

    Click here

  5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (w/o Glow Plug Controller)

    Click here

  6. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

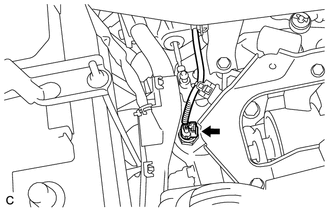

    1. A01LWKK

      Disconnect the back-up light switch assembly connector.

    2. A01LV7PN01

      Using SST, remove the back-up light switch assembly and gasket from the manual transaxle assembly.

      SST
      09817-16011
