ОХЛАДИТЕЛЬ РОГ СНЯТИЕ

PROCEDURE


  1. DRAIN ENGINE COOLANT

    Click here

  2. REMOVE NO. 1 ENGINE COVER (w/ No. 1 Engine Cover)


  3. REMOVE EGR BYPASS VALVE SWITCHING VALVE (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY)

    Click here

  4. REMOVE EGR PIPE WITH COOLER SUB-ASSEMBLY

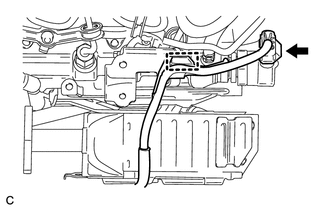

    1. A01LVIW

      Disconnect the connector and disengage the wire harness clamp.

    2. A01LYZG

      Disconnect the 2 connectors and remove the bolt.

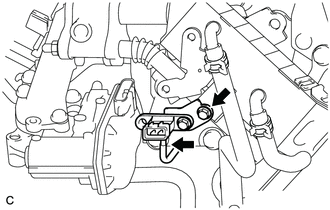

    3. A01M05E

      Disconnect the vacuum transmitting hose and remove the bolt and manifold absolute pressure sensor (diesel turbo pressure sensor).

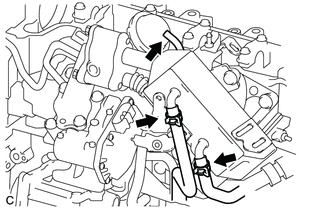

    4. A01M3AN

      Disconnect the vacuum hose from the No. 2 EGR valve assembly.

    5. Slide the 2 clips and disconnect the No. 2 oil cooler hose and No. 2 water by-pass hose from the EGR pipe with cooler sub-assembly.

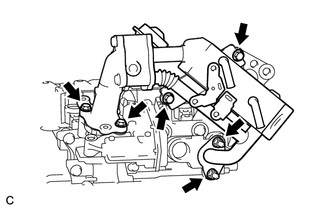

    6. A01LVBF

      Remove the 4 bolts, 2 nuts and EGR pipe with cooler sub-assembly.

    7. Remove the 2 gaskets from the cylinder head and EGR valve (electric EGR control valve assembly).

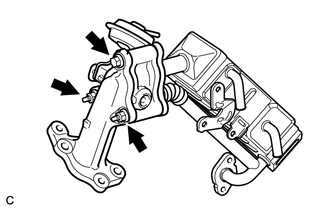

    8. A01M2P7

      Remove the bolt, 2 nuts and EGR pipe connector.

    9. Remove the 2 gaskets and No. 2 EGR valve assembly from the EGR pipe with cooler sub-assembly.

  5. REMOVE STUD BOLT

    Tech Tips

    If a stud bolt is deformed or the threads are damaged, replace it.

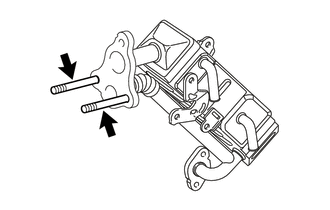

    1. A01M0RW

      Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the EGR pipe with cooler sub-assembly.
