ДАТЧИК УРОВНЯ МАСЛА СНЯТИЕ

PROCEDURE


  1. REMOVE NO. 1 ENGINE UNDER COVER

  2. REMOVE REAR ENGINE UNDER COVER RH

  3. DRAIN ENGINE OIL

    Click here

  4. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Click here

  5. REMOVE ENGINE OIL LEVEL SENSOR


    1. Disconnect the engine oil level sensor connector.

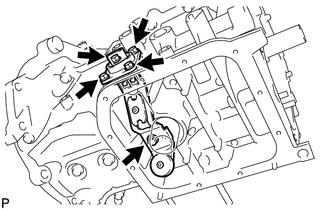

    2. A00Y5NI

      Remove the 5 bolts and engine oil level sensor.

      Note

      Do not deform the engine oil level sensor float or allow it to come in contact with other parts.

    3. Remove the gasket from the engine oil level sensor.
