ДАТЧИК ТЕМПЕРАТУРЫ ВОЗДУХА НА ВПУСКЕ СНЯТИЕ

PROCEDURE

1. Click here

   REMOVE NO. 1 ENGINE COVER (w/ No. 1 Engine Cover)

   Click here

2. Click here

   REMOVE NO. 3 AIR HOSE

   Click here

3. Click here

   REMOVE INTAKE AIR TEMPERATURE SENSOR



   1.

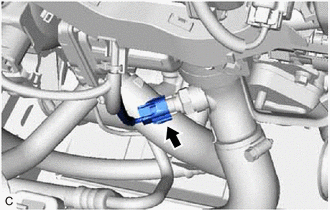

      Disconnect the connector from the No. 2 air tube assembly.

   2.

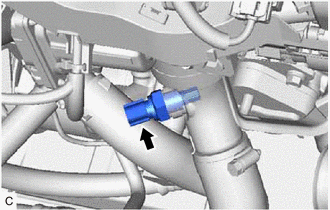

      Using a 22 mm socket wrench, remove the intake air temperature sensor from the No. 2 air tube assembly.

      Note:

      If a component has been dropped or subjected to a strong impact, replace it.

   3. Remove the gasket from the intake air temperature sensor.
