ГЕНЕРАТОР СНЯТИЕ

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE NO. 1 ENGINE COVER (w/ No. 1 Engine Cover)

    Click here

  4. REMOVE V-RIBBED BELT

    Click here

  5. REMOVE GENERATOR ASSEMBLY


    1. B0041P4

      Remove the terminal cap.

    2. Disconnect the connector and 2 clamps.

    3. Remove the nut and disconnect the wire harness from terminal B.

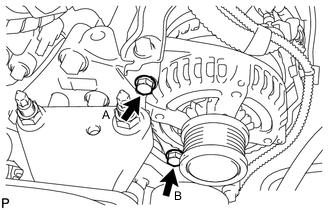

    4. B0042T2E01

      Fully loosen the bolt A.

      Tech Tips

      The bolt A cannot be fully removed from the bracket.

    5. Remove the bolt B and generator assembly.
