MULTI-MODE MANUAL TRANSAXLE SYSTEM, Diagnostic DTC:P0715

DTC Code DTC Name
P0715 Input / Turbine Speed Sensor Circuit Malfunction

DESCRIPTION

The transmission revolution sensor is mounted on the transaxle. The TCM calculates the transaxle input shaft speed using the sensor. When the input shaft rotates, the sensor generates a pulse signal and sends the signal to the TCM. The ECU calculates the input shaft speed based on the signal. If the input shaft speed falls below a threshold despite the engine running, the ECU interprets this as a malfunction in the transmission revolution sensor circuit. The ECU stores this DTC and illuminates the multi-mode manual transaxle warning light.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate Memory
P0715 Input / Turbine Speed Sensor Circuit Malfunction

The TCM detects the following conditions simultaneously:

(1-trip detection logic)


  1. Vehicle speed is 29 km/h (18.0 mph) or more.

  2. Transmission revolution speed is 150 rpm or less for 4 seconds.

  • Open or short in transmission revolution sensor circuit

  • Transmission revolution sensor

  • TCM

 Does not come on Comes on DTC stored

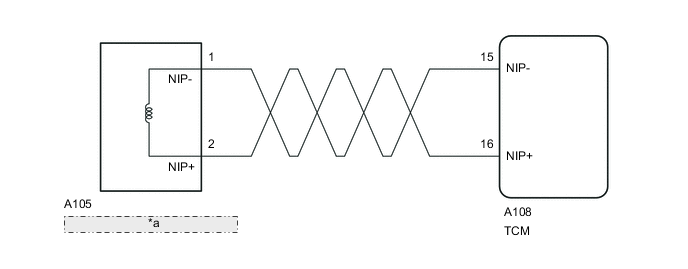

WIRING DIAGRAM

B0041Y4E01
*a Transmission Revolution Sensor

PROCEDURE


  1. INSPECT SENSOR INSTALLATION (TRANSMISSION REVOLUTION SENSOR)

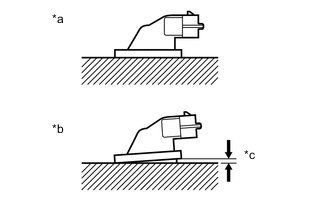

    1. B0042G4C02
      *a Normal
      *b Abnormal
      *c Clearance

      Check the transmission revolution sensor installation.

      OK
      Sensor is installed correctly.
      Result
      Proceed to
      OK
      NG

    NG

    SECURELY INSTALL OR REPLACE SENSOR

    OK

  2. INSPECT TRANSMISSION REVOLUTION SENSOR

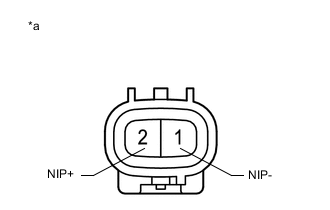

    1. B0043OWC01
      *a

      Component without harness connected

      (Transmission revolution sensor)

      Disconnect the transmission revolution sensor connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 (NIP-) - 2 (NIP+) 20°C (68°F) 560 to 680 Ω
      Result
      Proceed to
      OK
      NG

    NG

    REPLACE TRANSMISSION REVOLUTION SENSOR Click here

    OK

  3. CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR - TCM)


    1. Reconnect the transmission revolution sensor connector.

    2. Disconnect the TCM connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A108-15 (NIP-) - A108-16 (NIP+) 20°C (68°F) 560 to 680 Ω
      A108-15 (NIP-) - Body ground Always 10 kΩ or higher
      A108-16 (NIP+) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. REPLACE TCM


    1. Replace the TCM.

      Click here

      Result
      Proceed to
      NEXT

    NEXT

  5. PERFORM INITIALIZATION


    1. Perform the initialization and learning procedure.

      Click here

      Result
      Proceed to
      NEXT

    NEXT

    END
