CLOCK INSTALLATION

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.


  1. INSTALL CLOCK ASSEMBLY

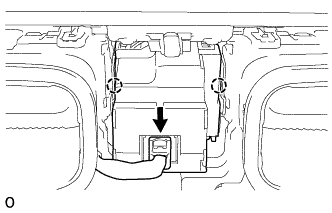

    A01GJO3

    1. Attach the 2 claws to install the clock assembly to the instrument cluster finish panel garnish assembly.

    2. Connect the connector.

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY


    1. Connect each connector.

    2. Attach the 12 clips to install the instrument cluster finish panel garnish assembly.

      A01GMKU

  3. INSTALL INSTRUMENT SIDE PANEL RH

    A01GNEH

    1. Attach the 6 clips to install the instrument side panel RH.

  4. INSTALL MULTI-MEDIA MODULE RECEIVER ASSEMBLY


    1. Connect the connectors.

    2. Insert the multi-media module receiver assembly with bracket.

      Note

      When inserting the radio receiver, do not press the knobs on it.

    3. A01GHNQ

      Attach the 6 clips.

    4. Install the multi-media module receiver assembly with bracket with the 2 bolts.

  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL


    1. Connect the connector.

    2. Attach the 5 guides and 4 clips to install the lower No. 1 instrument panel finish panel.

  6. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL


    1. Attach the 5 guides and 4 clips to install the lower No. 2 instrument panel finish panel.

  7. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY


    1. Attach the 6 clips to install the upper console panel sub-assembly.

    2. Connect the connector.

  8. INSTALL UPPER INSTRUMENT CLUSTER FINISH PANEL


    1. Attach the 5 clips to install the upper instrument cluster finish panel.

  9. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY


    1. Connect each connector and attach each wire harness clamp.

    2. A01GNRT

      Attach the 6 clips to install the upper rear console panel sub-assembly.

    3. Install the 2 screws.

  10. INSTALL NO. 3 BOX PANEL


    1. Attach the 4 claws to install the No. 3 box panel.

  11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY


    1. A01GITL

      Twist the shift lever knob sub-assembly in the direction indicated by the arrow to install it.

    2. A01GJKF

      Pull up the shift lever boot to connect it to the shift lever knob sub-assembly.

  12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH


    1. Attach the rear part of the instrument panel finish panel end LH 3 clips.

    2. Attach the front part of the instrument panel finish panel end LH 6 clips to install the instrument panel finish panel end LH.

  13. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

    Tech Tips

    Use the same procedure described for the LH side.

  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  15. INSTALL COWL TOP VENTILATOR LOUVER RH


    1. A01GM4S

      for LHD:

      Install the 6 clips and cowl top ventilator louver RH.

      Note

      If the cowl top ventilator louver RH is not properly installed, water may leak into the engine room and cause malfunctions. Therefore, make sure the cowl top ventilator louver RH is installed properly.

    2. A01GI9P

      for RHD:

      Install the 6 clips and cowl top ventilator louver LH.

      Note

      If the cowl top ventilator louver LH is not properly installed, water may leak into the engine room and cause malfunctions. Therefore, make sure the cowl top ventilator louver LH is installed properly.
