TURN SIGNAL FLASHER ASSEMBLY REMOVAL

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.


  1. REMOVE COWL TOP VENTILATOR LOUVER RH


    1. A01GM4S

      Remove the 6 clips and cowl top ventilator louver RH.

  2. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing Click here.

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Click here

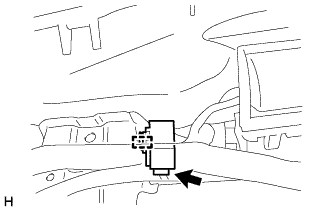

  5. REMOVE TURN SIGNAL FLASHER ASSEMBLY

    A01GLBX

    1. Detach the clamp.

    2. Disconnect the connector to remove the turn signal flasher assembly.
