REGISTER ILLUMINATION(for Driver Side) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE INSTRUMENT SIDE PANEL LH

    Click here

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Click here

  3. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Click here

  4. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD

    Click here

  5. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY


    1. B004W8A

      Remove the screw.

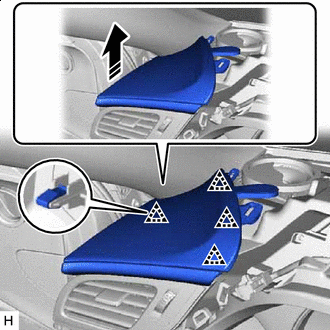

    2. B004V8WC02
      B004RMIC50 Remove in this Direction

      Pull in the direction indicated by the arrow shown in the illustration to detach the clip and remove the No. 1 instrument panel safety pad sub-assembly.

    3. B004YLU

      Disconnect the connector.

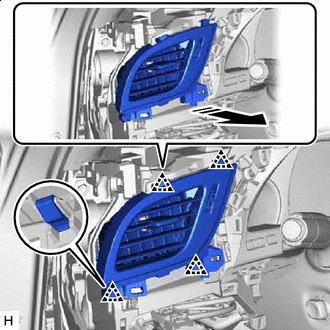

    4. B004SXKC02
      B004RMI Remove in this Direction

      Pull in the direction indicated by the arrow shown in the illustration to detach the clip and remove the No. 1 instrument panel register assembly.
