REGISTER ILLUMINATION(for Driver Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the No. 1 instrument panel register assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative when not Performed Link
Disconnect cable from negative(-) auxiliary battery terminal Memorize steering angle neutral point LKA/LDA system

Click here

Pre-collision system
Initialize parking assist monitor system Parking assist monitor system

Click here

Steering Sensor Initialization Variable gear ratio steering system

Click here

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE NO. 2 DECK BOARD

    Click here

  2. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    B004A1V

    Click here

    Note

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative(-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative(-) auxiliary battery terminal notices before proceeding with work.

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Click here

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative(-) auxiliary battery terminal to disable the SRS system.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B004A52

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE INSTRUMENT PANEL ASSEMBLY

    Click here

  5. REMOVE INSTRUMENT PANEL REGISTER BEZEL

    Click here

  6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

    Click here

  7. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Click here

  8. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

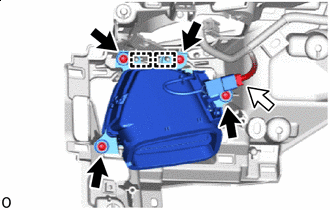

    1. B004AGIC03
      B004C4F Screw
      B004ANI Connector

      Remove the 4 screws.

    2. Detach the guide to remove the No. 1 instrument panel register assembly.

    3. Disconnect the connector.
