REAR SEAT OUTER BELT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear seat outer belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Disconnect cable from negative battery terminal Memorize steering angle neutral point LKA/LDA System

Click here

Pre-Crash Safety System

Lighting System (EXT)


  • Cornering lights
Adaptive High Beam System
Drive the vehicle until stop and start control is permitted (approximately 15 to 60 minutes) Stop and start system

Click here

Memorize steering angle neutral point Parking Assist Monitor System (w/ Parallel Parking Assist Function)

Click here

Parking Assist Monitor System (w/o Parallel Parking Assist Function)

Click here

Panoramic View Monitor System

Click here

Initialize back door lock Power door lock control system

Click here

Reset back door close position Power back door system

Click here

CAUTION:


  • Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Click here

  • Wear protective gloves. Sharp areas on the parts may injure your hands.

B005NS4

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    • If an SRS part is accidentally deployed, it may cause a serious injury.

    B005NWT

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE TONNEAU COVER ASSEMBLY

    Click here

  4. REMOVE DECK BOARD ASSEMBLY

    Click here

  5. REMOVE REAR NO. 3 FLOOR BOARD

    Click here

  6. REMOVE SPARE WHEEL COVER (for Compact Spare Tire)

    Click here

  7. REMOVE REAR DECK FLOOR BOX (w/ Spare Tire)

    Click here

  8. REMOVE REAR FLOOR CARPET (w/o Spare Tire)

    Click here

  9. REMOVE REAR NO. 4 FLOOR BOARD (except Full Size Spare Tire)

    Click here

  10. REMOVE REAR NO. 4 FLOOR BOARD (for Full Size Spare Tire)

    Click here

  11. REMOVE FRONT DECK FLOOR BOX (for LH Side)

    w/ Spare Tire:

    Click here

  12. REMOVE DECK FLOOR BOX RH (w/o Spare Tire)

    Click here

  13. REMOVE DECK FLOOR BOX LH (for LH Side)

    w/o Spare Tire:

    Click here

  14. REMOVE DECK SIDE TRIM BOX RH (except Full Size Spare Tire)

    Click here

  15. REMOVE DECK SIDE TRIM BOX RH (for Full Size Spare Tire)

    Click here

  16. REMOVE REAR FLOOR FINISH PLATE

    Click here

  17. REMOVE REAR DOOR SCUFF PLATE

    Click here

  18. REMOVE REAR SEAT ASSEMBLY LH (for LH Side)

    Click here

  19. REMOVE REAR SEAT ASSEMBLY RH (for RH Side)

    Click here

  20. REMOVE UPPER QUARTER TRIM PAD

    Click here

  21. REMOVE REAR SEAT SIDE GARNISH

    Click here

  22. REMOVE REAR FLOOR FINISH SIDE PLATE

    Click here

  23. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

    Click here

  24. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    Click here

  25. REMOVE ROPE HOOK ASSEMBLY (for LH Side)

    Click here

  26. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

    Click here

  27. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Click here

  28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Click here

  29. REMOVE RECLINING REMOTE CONTROL BEZEL RH (for RH Side)

    w/o Rear Power Seat System:

    Click here

  30. REMOVE FOLD SEAT SWITCH ASSEMBLY (for RH Side)

    w/ Rear Power Seat System:

    Click here

  31. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Click here

  32. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

    Click here

  33. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

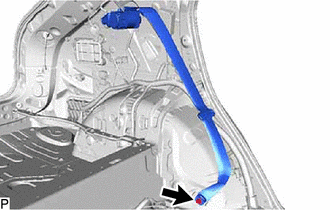

    1. B005O5B

      Remove the bolt to disconnect the floor anchor of the rear No. 1 seat outer belt assembly.

  34. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY

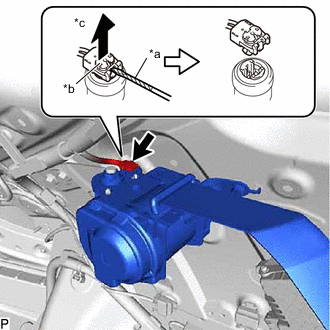

    1. B005L5PC01
      *a Protective Tape
      *b Locking Button
      *c Release

      Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

      Tech Tips

      Tape the screwdriver tip before use.

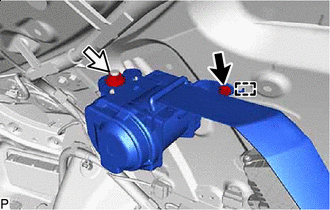

    2. B005PH4C01
      B005NIZ Bolt
      B005LWS Nut

      Remove the bolt and nut.

    3. Disengage the guide and remove the rear No. 1 seat outer belt assembly.

  35. REMOVE OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY

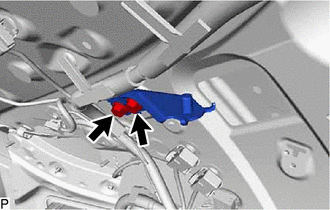

    B005MBM

    1. Remove the 2 bolts and outer belt anchor bracket sub-assembly.
