REAR DOOR LOCK INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. INSTALL REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

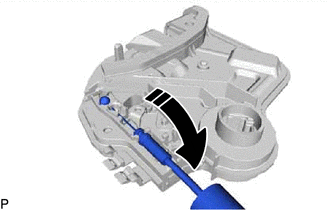

    1. B005O1SC01
      B005OOA Install in this Direction

      Install the rear door inside locking cable assembly as shown in the illustration.

  3. INSTALL REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

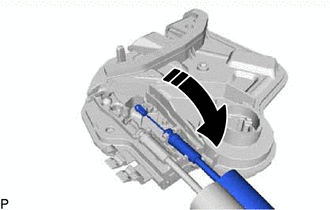

    1. B005LD8C01
      B005OOA Install in this Direction

      Install the rear door lock remote control cable assembly as shown in the illustration.

  4. INSTALL REAR DOOR LOCK COVER SUB-ASSEMBLY

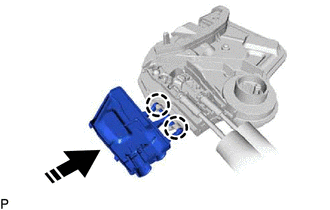

    1. B005OCVC01
      B005OOA Install in this Direction

      Engage the 2 claws as shown in the illustration.

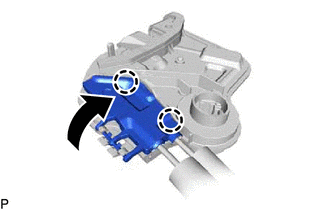

    2. B005MQB

      Engage the 2 claws to install the rear door lock cover sub-assembly as shown in the illustration.

  5. INSTALL REAR DOOR LOCK ASSEMBLY

    Note


    • When reusing a removed rear door lock assembly, replace the door lock wiring harness seal with a new one.

    • Do not allow grease or dust to adhere to the door lock wiring harness seal installation surface.

    • Reusing a door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water ingress. This may result in a malfunction of the rear door lock assembly.


    1. Apply MP grease to the sliding parts of the rear door lock assembly.

    2. When reusing the rear door lock assembly:


      1. Install a new door lock wiring harness seal to the rear door lock assembly.

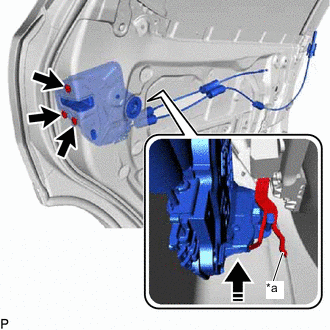

    3. B005PAHC01
      *a Release Plate
      B005OOA Install in this Direction

      Connect the rear door lock assembly to the release plate of the rear door outside handle frame sub-assembly, and set it to the rear door panel.

      Tech Tips

      Make sure that the release plate of the rear door outside handle frame sub-assembly is securely connected to the rear door lock assembly.

    4. Using a T30 "TORX" socket wrench, install the rear door lock assembly with the 3 screws.

      Torque:
      5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

  6. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

    Click here

  7. INSTALL REAR DOOR REAR GUIDE SEAL

    Click here

  8. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Click here

  9. CONNECT REAR DOOR WEATHERSTRIP


    1. Connect the rear door weatherstrip.

  10. INSTALL REAR DOOR GLASS RUN

    Click here

  11. INSTALL REAR DOOR SERVICE HOLE COVER

    Click here

  12. INSTALL REAR DOOR NO. 2 TRIM BRACKET

    Click here

  13. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP

    Click here

  14. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Click here

  15. INSTALL COURTESY LIGHT ASSEMBLY

    Click here

  16. INSTALL REAR DOOR ARMREST COVER

    Click here

  17. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Click here

  18. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG

    Click here

  19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  20. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Click here

  21. INSPECT POWER WINDOW OPERATION

    Click here
