QUARTER TRIM SPEAKER(w/o Rear No. 2 Seat) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during quarter side speaker assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Disconnect cable from negative battery terminal Memorize steering angle neutral point LKA/LDA System

Click here

Intelligent clearance sonar system*1
Pre-crash safety system

Lighting system (EXT)


  • Cornering lights
Adaptive high beam system
Drive the vehicle until stop and start control is permitted (approximately 15 to 60 minutes) Stop and start system

Click here

Memorize steering angle neutral point Parking assist monitor system (w/ Parallel parking assist function)

Click here

Parking assist monitor system (w/o Parallel parking assist function)

Click here

Panoramic view monitor system

Click here

Initialize back door lock Power door lock control system

Click here

Reset back door close position Power back door system

Click here

*1: When performing learning using the GTS.

Click here

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

B005NS4

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE TONNEAU COVER ASSEMBLY

    Click here

  2. REMOVE DECK BOARD ASSEMBLY

    Click here

  3. REMOVE REAR NO. 3 FLOOR BOARD

    Click here

  4. REMOVE SPARE WHEEL COVER (for Compact Spare Tire)

    Click here

  5. REMOVE REAR DECK FLOOR BOX (w/ Spare Tire)

    Click here

  6. REMOVE REAR FLOOR CARPET (w/o Spare Tire)

    Click here

  7. REMOVE REAR NO. 4 FLOOR BOARD (except Full Size Spare Tire)

    Click here

  8. REMOVE REAR NO. 4 FLOOR BOARD (for Full Size Spare Tire)

    Click here

  9. REMOVE FRONT DECK FLOOR BOX (w/ Spare Tire)

    for LH Side:

    Click here

  10. REMOVE DECK FLOOR BOX RH (w/o Spare Tire)

    Click here

  11. REMOVE DECK FLOOR BOX LH (w/o Spare Tire)

    for LH Side:

    Click here

  12. REMOVE DECK SIDE TRIM BOX RH (except Full Size Spare Tire)

    Click here

  13. REMOVE DECK SIDE TRIM BOX RH (for Full Size Spare Tire)

    Click here

  14. REMOVE REAR FLOOR FINISH PLATE

    Click here

  15. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  16. REMOVE REAR SEAT ASSEMBLY LH (for LH Side)

    Click here

  17. REMOVE REAR SEAT ASSEMBLY RH (for RH Side)

    Click here

  18. REMOVE UPPER QUARTER TRIM PAD LH

    Click here

  19. REMOVE REAR SEAT SIDE GARNISH LH

    Click here

  20. REMOVE REAR FLOOR FINISH SIDE PLATE LH

    Click here

  21. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

    Click here

  22. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    Click here

  23. REMOVE ROPE HOOK ASSEMBLY

    Click here

  24. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

    Click here

  25. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Click here

  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Click here

  27. REMOVE RECLINING REMOTE CONTROL BEZEL RH (for RH Side)

    w/o Rear Power Seat System:

    Click here

  28. REMOVE FOLD SEAT SWITCH ASSEMBLY (for RH Side)

    w/ Rear Power Seat System:

    Click here

  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Click here

  30. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Click here

  31. REMOVE QUARTER SIDE SPEAKER ASSEMBLY

    Note

    Do not touch the speaker cone.

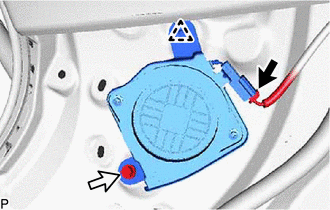

    1. B005LB0

      Disconnect the connector.

    2. Remove the bolt.

    3. Disengage the clip and remove the quarter side speaker assembly.
