KNEE AIRBAG ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The following procedure is for an LHD vehicle.

PROCEDURE


  1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY


    1. Check that the engine switch is off.

    2. Check that the cable is disconnected from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      B007WSF

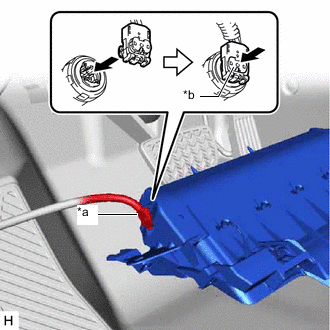

    3. B007Z0CC01
      *a Airbag Connector
      *b Airbag Connector Lock

      Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.

      Note

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    4. Push in the airbag connector lock to install the airbag connector.

    5. Engage the hook, 2 guides and 3 claws to temporarily install the lower No. 1 instrument panel airbag assembly.

    6. Install the 2 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

      Note

      Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

  2. INSTALL LOWER INSTRUMENT FINISH PANEL SUB

    Click here

  3. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Click here

  4. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Click here

  5. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click here

  6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Click here

  7. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Click here

  8. INSTALL INSTRUMENT PANEL GARNISH LH

    Click here

  9. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

  10. INSTALL COWL SIDE TRIM BOARD LH

    Click here

  11. INSTALL FRONT DOOR SCUFF PLATE LH

    w/o Rear No. 2 Seat: Click here

    w/ Rear No. 2 Seat: Click here

  12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  13. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

  14. INSPECT SRS WARNING LIGHT

    Click here
