STEERING KNUCKLE REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH

    Click here

  2. REMOVE FRONT LOWER BALL JOINT ASSEMBLY LH

    Click here

  3. REMOVE STEERING KNUCKLE LH

    1. Secure the front axle assembly in a vise.

      Note:

      When using a vise, do not overtighten it.

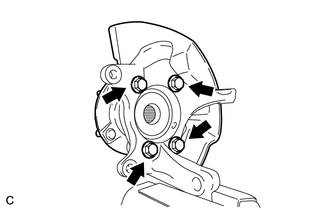

    2. C163588

      Remove the 4 bolts, steering knuckle LH and front brake dust cover from the front axle hub sub-assembly.

      Note:

      Do not place the hub and bearing's magnet rotor side so that it is facing downward, and do not allow the magnet rotor side to become damaged or contact foreign matter.
