REAR AIR CONDITIONING UNIT COMPONENTS

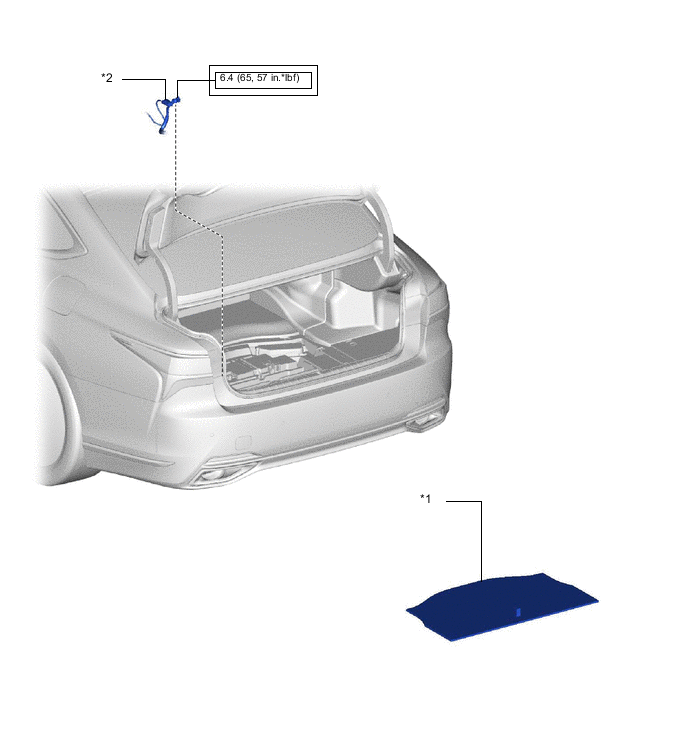

ILLUSTRATION
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE BATTERY TERMINAL |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

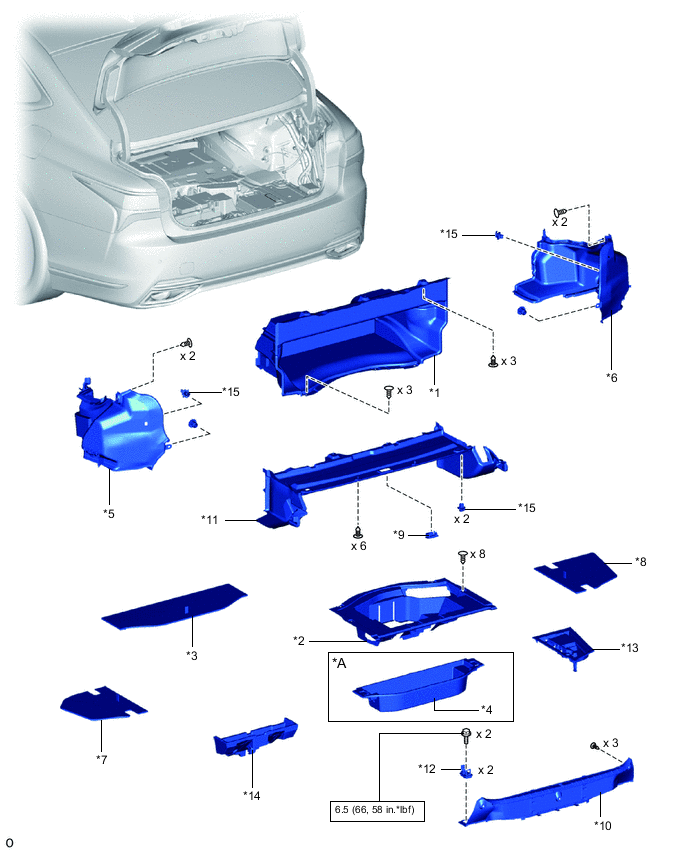

ILLUSTRATION
| *A | w/ Luggage Compartment Trim Box | - | - |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | INNER LOWER LUGGAGE COMPARTMENT TRIM COVER |
| *3 | LUGGAGE COMPARTMENT FLOOR MAT | *4 | LUGGAGE COMPARTMENT TRIM BOX |
| *5 | LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH | *6 | LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH |
| *7 | LUGGAGE COMPARTMENT TRIM COVER LH | *8 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *9 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *10 | REAR FLOOR FINISH PLATE |
| *11 | REAR LUGGAGE COMPARTMENT TRIM COVER | *12 | ROPE HOOK ASSEMBLY |
| *13 | SIDE TRIM BOX | *14 | TOOL BOX |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY | *2 | NO. 2 ROOF SIDE AIR DUCT LH |
| *3 | NO. 2 ROOF SIDE AIR DUCT RH | *4 | NO. 4 REAR AIR DUCT |
| *5 | NO. 5 REAR AIR DUCT | *6 | NO. 6 REAR AIR DUCT |
| *7 | REAR COOLING UNIT ASSEMBLY | *8 | O-RING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent | - | - |
ILLUSTRATION
| *A | w/ Cool Box | - | - |
| *1 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY | *2 | AIR DUCT SUB-ASSEMBLY |
| *3 | COOLER BRACKET | *4 | NO. 1 REAR COOLING UNIT DAMPER SERVO SUB-ASSEMBLY |
| *5 | NO. 2 AIR CONDITIONING HARNESS ASSEMBLY | *6 | NO. 2 COOLER UNIT DRAIN HOSE |
| *7 | REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY | *8 | CASE |
| *9 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |

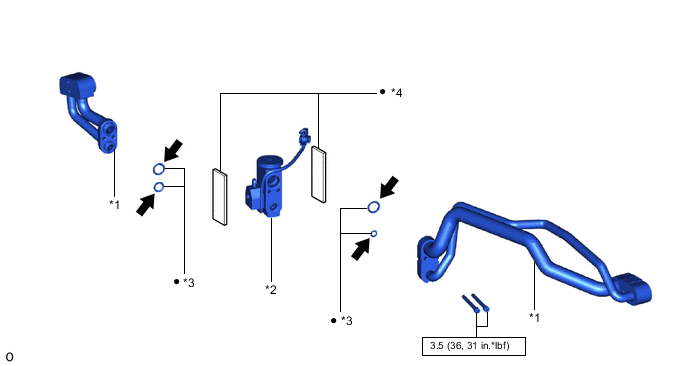

ILLUSTRATION
| *1 | NO. 2 AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY | *2 | REAR EVAPORATOR SUB-ASSEMBLY |
| *3 | O-RING | *4 | PACKING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |

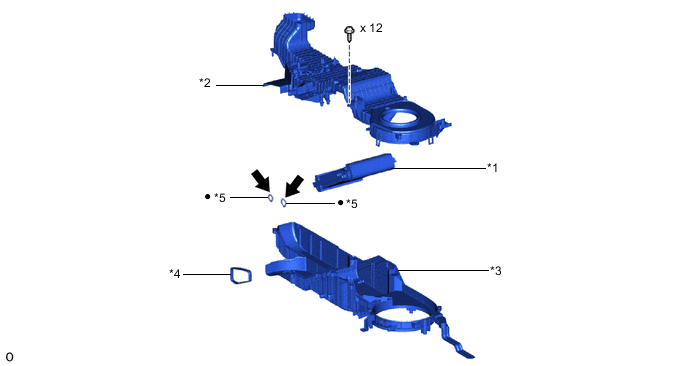

ILLUSTRATION
| *1 | REAR EVAPORATOR SUB-ASSEMBLY | *2 | UPPER CASE |
| *3 | LOWER CASE | *4 | PACKING |
| *5 | O-RING | - | - |
| ● | Non-reusable part | - | - |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |
