OUTER REAR VIEW MIRROR REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH (w/o Mirror Heater)

    Click hereClick here

  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (w/ Mirror Heater)

    for Driver Side:

    Click hereClick here

  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (w/ Mirror Heater)

    for Front Passenger Side:

    Click hereClick here

  4. REMOVE FRONT DOOR TRIM COVER (w/ Mirror Heater)

    Click hereClick here

  5. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH (w/ Mirror Heater)

    Click hereClick here

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY (w/ Mirror Heater)

    Click hereClick here

  7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

    1. w/ Mirror Heater:

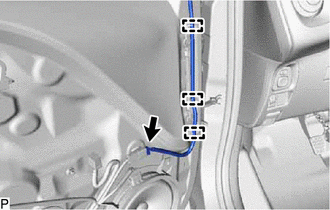

      1. B370081

        Disconnect the connector.

      2. Disengage the 3 clamps.

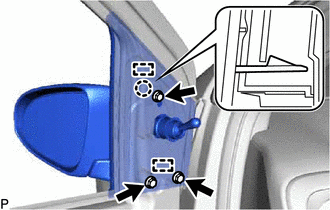

    2. B370082

      Remove the 3 screws.

    3. Disengage the claw and 2 guides, and remove the outer rear view mirror assembly with cover.
