TIRE PRESSURE WARNING SYSTEM

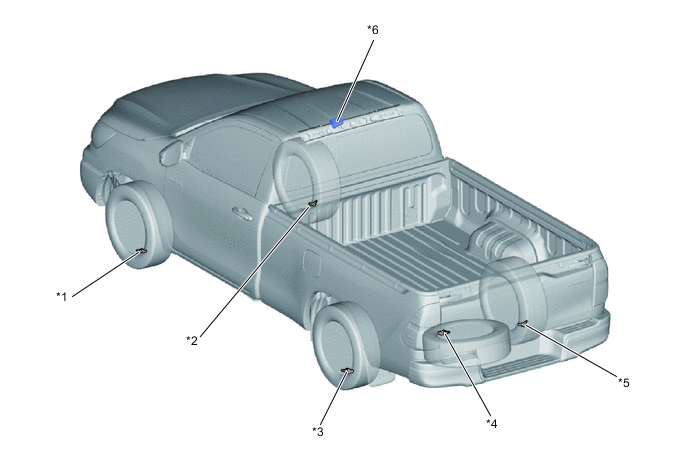

Figure 1. Single Cab Models
| *1 | Tire Pressure Warning Valve and Transmitter (Front LH) | *2 | Tire Pressure Warning Valve and Transmitter (Front RH) |
| *3 | Tire Pressure Warning Valve and Transmitter (Rear LH) | *4 | Tire Pressure Warning Valve and Transmitter (Spare Tire) |
| *5 | Tire Pressure Warning Valve and Transmitter (Rear RH) | *6 | Tire Pressure Warning ECU and Receiver |

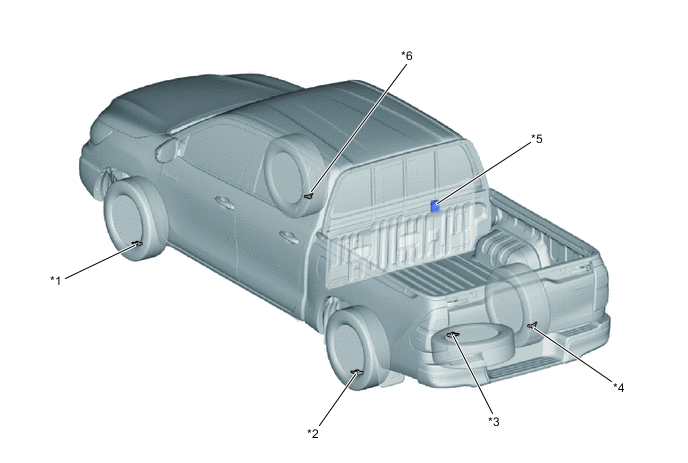

Figure 2. Double Cab Models
| *1 | Tire Pressure Warning Valve and Transmitter (Front LH) | *2 | Tire Pressure Warning Valve and Transmitter (Rear LH) |
| *3 | Tire Pressure Warning Valve and Transmitter (Spare Tire) | *4 | Tire Pressure Warning Valve and Transmitter (Rear RH) |
| *5 | Tire Pressure Warning ECU and Receiver | *6 | Tire Pressure Warning Valve and Transmitter (Front RH) |

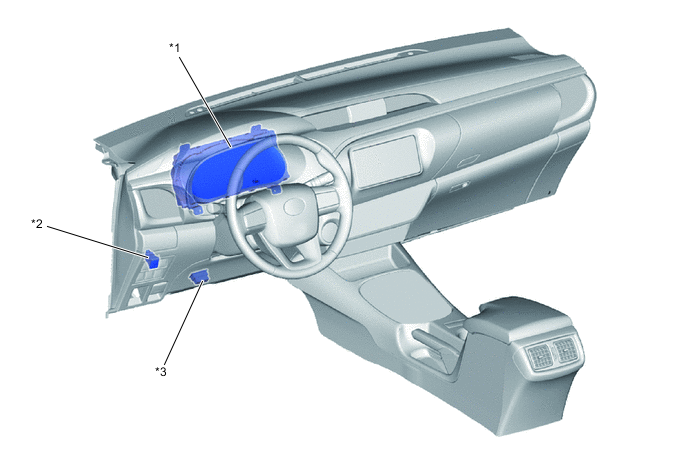

| *1 | Combination Meter Assembly
|
*2 | Tire Pressure Warning Reset Switch |
| *3 | DLC3 | - | - |
