LICENSE PLATE LIGHT ASSEMBLY INSTALLATION

PROCEDURE

1. INSTALL LICENSE PLATE LIGHT BULB




   1. Install the license plate light bulb to the license plate light socket and wire.

   2.

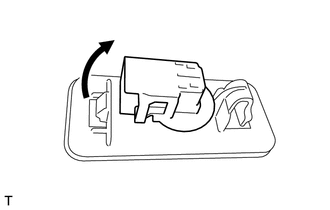

      Turn the license plate light socket and wire with the license plate light bulb in the direction indicated by the arrow shown in the illustration and install them as a unit.

      Tech Tips

      Use the same procedure as for the other side.

2. INSTALL LICENSE PLATE LIGHT ASSEMBLY




   1. Engage the 2 claws to install the license plate light assembly.

   2. Connect the connector.

      Tech Tips

      Use the same procedure as for the other side.

3. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

   Click here
