TIRE AND WHEEL TYPE SYSTEM

OUTLINE

1. 2 sizes of tire are available.

2. 4 types of aluminum disc wheel are available.

3. This kit first feeds repair sealant directly into a punctured tire, and then refills it with air using an air compressor.^*

   Tech Tips

   *: Models with tire repair set

SPECIFICATION

1. Tire and wheel ( - 2017/10)

   Tire	Size			205/55R16	215/45R17
   Wheel	Size			16 x 6 1/2J	17 x 7J
   	Material			Aluminum	Aluminum
   	Pitch Circle Diameter		mm (in.)	100 (3.9)	←
   	Inset		mm (in.)	48 (1.9)	←
   Wheel Cap				Center Ornament	←

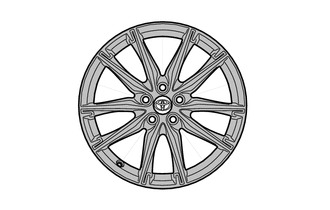

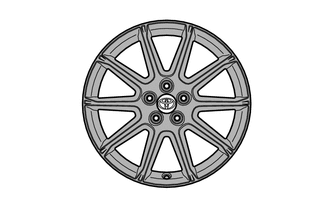

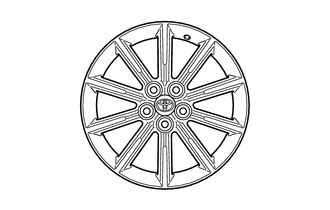

   Wheel Design

   Tire	Size			215/45R17	←
   Wheel	Size			17 x 7 1/2J	17 x 7J
   	Material			Aluminum (Super Black Hailuster)	←
   	Pitch Circle Diameter		mm (in.)	100 (3.9)	←
   	Inset		mm (in.)	48 (1.9)	←
   Wheel Cap				Center Ornament	←

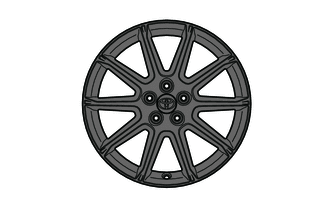

   Wheel Design

2. Tire and wheel (2017/10 - )

   Tire	Size			205/55R16	215/45R17
   Wheel	Size			16 x 6 1/2J	17 x 7J
   	Material			Aluminum	Aluminum
   	Pitch Circle Diameter		mm (in.)	100 (3.9)	←
   	Inset		mm (in.)	48 (1.9)	←
   Wheel Cap				Center Ornament	←

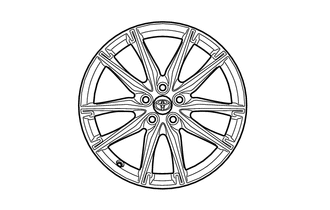

   Wheel Design

   Tire	Size			215/45R17	←
   Wheel	Size			17 x 7 1/2J	←
   	Material			Aluminum (Super Black Hailuster)	Aluminum (Black Paint)
   	Pitch Circle Diameter		mm (in.)	100 (3.9)	←
   	Inset		mm (in.)	48 (1.9)	←
   Wheel Cap				Center Ornament	←
   Wheel Design

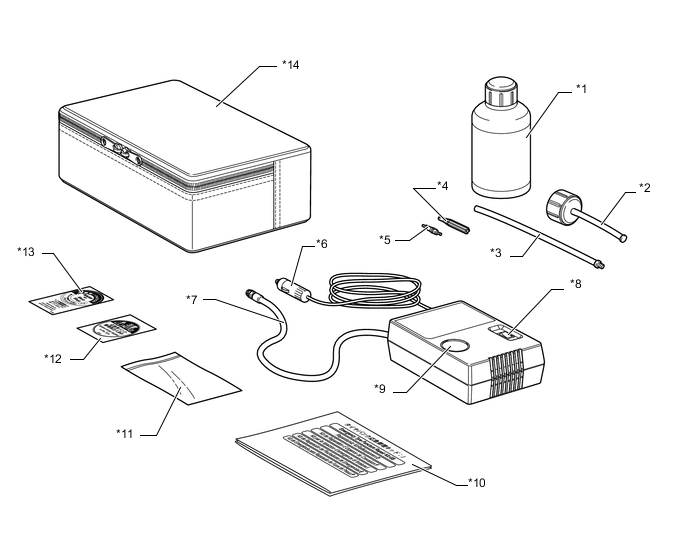

3. Tire Repair Set

   Item			Specification
   Usable Temperature Range		°C (°F)	-40 to 70 (-40 to 158)
   Maximum Current Consumption		A	10
   Sealant	Repair Seal Liquid Material		Natural Rubber, Terpene Polymer, 1, 3-Propanediol
   	Quantity	ml (US qts, Imp. qts)	400 (0.42, 0.35)
   	Expiration Date		Displayed on Sealant Bottle
