TELEMATICS SYSTEM
Figure 1. Models with G-BOOK 1
| *1 | Map Light Assembly | *2 | Telephone Microphone Assembly |
| *3 | Stereo Component Amplifier Assembly | *4 | Roof Antenna Assembly
|
| *5 | Front No. 1 Speaker Assembly RH | *6 | Emergency Call Switch |

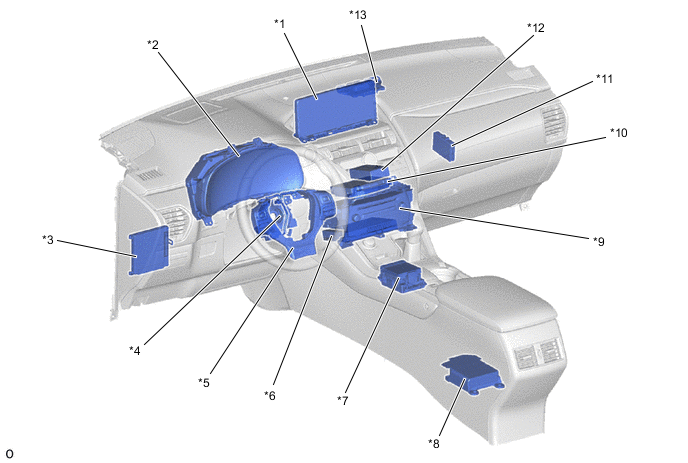

Figure 2. Models with G-BOOK 2
| *1 | Multi-display Assembly | *2 | Combination Meter Assembly |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Spiral Cable with Sensor Sub-assembly |
| *5 | Steering Pad Switch Assembly | *6 | Navigation ECU |
| *7 | Remote Touch (Remote Operation Controller Assembly) | *8 | Airbag ECU Assembly |
| *9 | Radio Receiver Assembly | *10 | DCM (Telematics Transceiver) |
| *11 | Central Gateway ECU (Network Gateway ECU) | *12 | Mayday Battery (Back-up Battery) |
| *13 | Navigation Antenna Assembly
|
- | - |

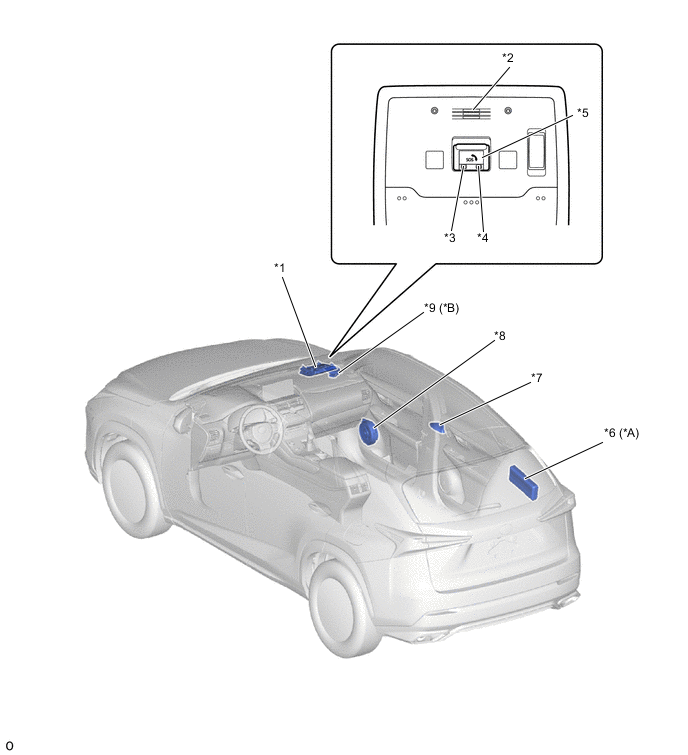

Figure 3. Models with ERA-GLONASS 1
| *A | Models with Stereo Component Amplifier Assembly | *B | Models without Stereo Component Amplifier Assembly |
| *1 | Map Light Assembly | *2 | Telephone Microphone Assembly |
| *3 | Manual (SOS) Switch Green Indicator | *4 | Manual (SOS) Switch Red Indicator |
| *5 | Manual (SOS) Switch | *6 | Stereo Component Amplifier Assembly |
| *7 | Roof Antenna Assembly
|
*8 | Front No. 1 Speaker Assembly RH |
| *9 | Front No. 2 Speaker Assembly RH | - | - |

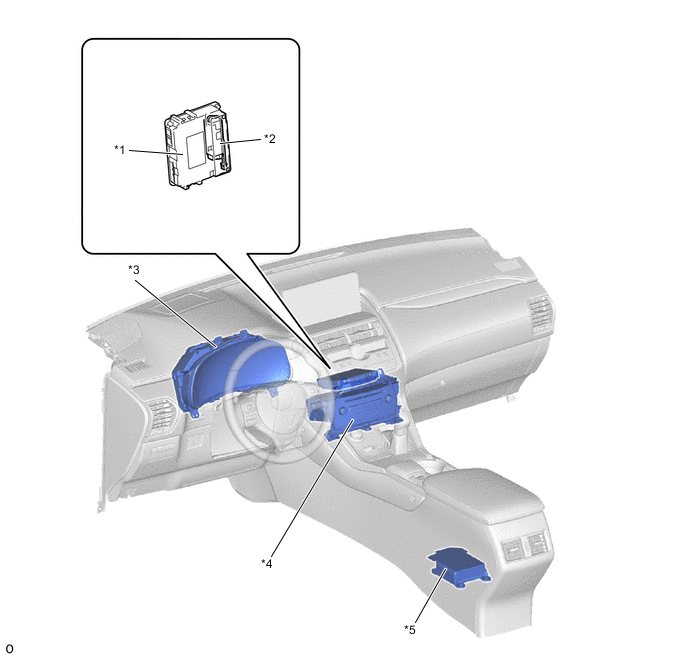

Figure 4. Models with ERA-GLONASS 2
| *1 | DCM (Telematics Transceiver) | *2 | Mobilephone Battery (Back-up Battery) |
| *3 | Combination Meter Assembly | *4 | Radio Receiver Assembly |
| *5 | Airbag ECU Assembly | - | - |
