FRONT DRIVE SHAFT ASSEMBLY INSPECTION

CAUTION / NOTICE / HINT

Note:

  • When using a vise, place aluminum plates between the part and vise.

  • When using a vise, do not overtighten it.

PROCEDURE

  1. INSPECT FRONT DRIVE SHAFT ASSEMBLY

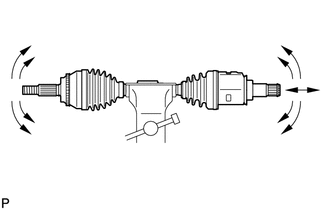

    1. C116430

      Secure the front drive shaft assembly in a vise.

      Note:

      • When using a vise, place aluminum plates between the part and vise.

      • When using a vise, do not overtighten it.

    2. Check that there is no excessive play in the radial direction of the inboard joint and outboard joint.

    3. Check the front axle inboard joint boot and front axle outboard joint boot for damage.

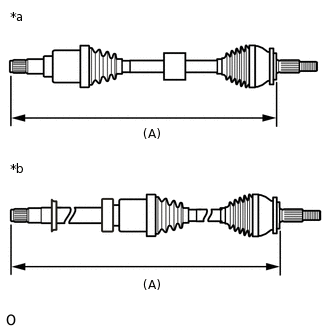

    4. C306388C01

      *a

      for LH Side

      *b

      for RH Side

      Check that the front axle inboard joint boot and front axle outboard joint boot are not stretched or contracted when the front drive shaft assembly is at the standard length.

      Length (A)

      Item

      Length

      LH Side

      570.9 mm (1.87 ft.)

      RH Side

      914.4 mm (3.00 ft.)
      Note:

      Keep the front drive shaft assembly level during inspection.

      If the front axle inboard joint boot and front axle outboard joint boot are stretched or contracted, correct them.
