VANITY LIGHT INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL VANITY LIGHT BULB

    1. Install the bulb.

  2. INSTALL VANITY LIGHT ASSEMBLY

    1. E145297

      Attach the 2 claws.

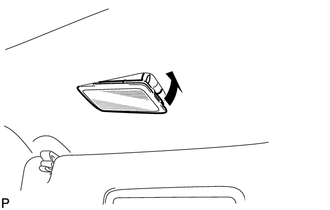

    2. E145296

      Attach the claw to install the vanity light as shown in the illustration.
