ECO SWITCH INSPECTION

PROCEDURE

  1. INSPECT COMBINATION SWITCH ASSEMBLY (ECO MODE SWITCH)

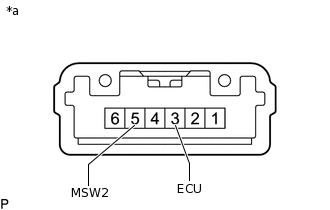

    1. C341835C05

      *a

      Component without harness connected

      (Combination Switch Assembly (Eco Switch))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Switch Condition

      Specified Condition

      3(ECU) - 5(MSW2)

      ECO switch turned and held at ECO position

      Below 10 Ω

      ECO switch not turned

      1 MΩ or higher

      If the result is not as specified, replace the combination switch assembly (eco switch).
