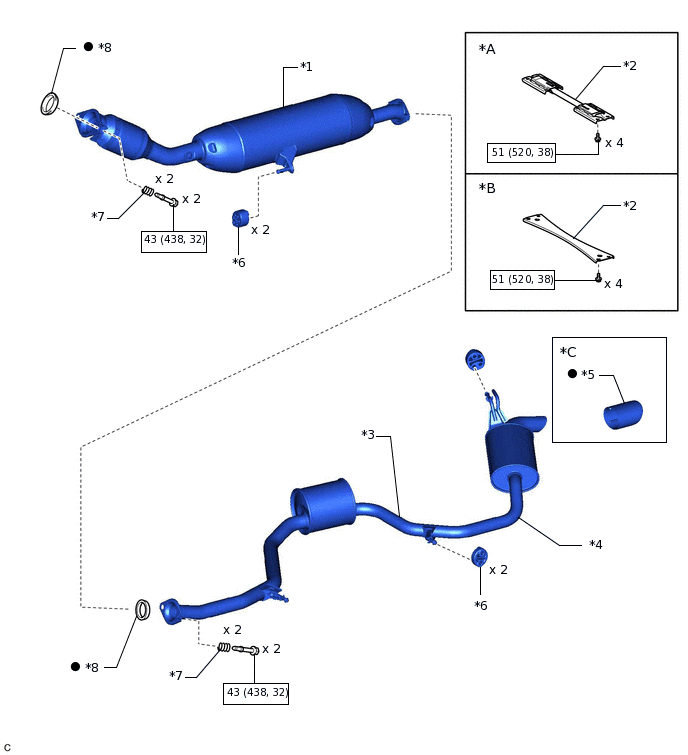

EXHAUST PIPE COMPONENTS

*A	Type A	*B	Type B
*C	w/ Tail Exhaust Pipe Baffle	-	-
*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)	*2	FRONT CENTER FLOOR BRACE SUB-ASSEMBLY
*3	CENTER EXHAUST PIPE ASSEMBLY	*4	TAIL EXHAUST PIPE ASSEMBLY
*5	TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY	*6	EXHAUST PIPE SUPPORT
*7	COMPRESSION SPRING	*8	GASKET
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*A

Type A

*B

Type B

*C

w/ Tail Exhaust Pipe Baffle

-

*1

FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

*2

FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

*3

CENTER EXHAUST PIPE ASSEMBLY

*4

TAIL EXHAUST PIPE ASSEMBLY

*5

TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

*6

EXHAUST PIPE SUPPORT

*7

COMPRESSION SPRING

*8

GASKET

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
