LICENSE PLATE LIGHT ASSEMBLY REMOVAL

PROCEDURE


  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Click here

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY

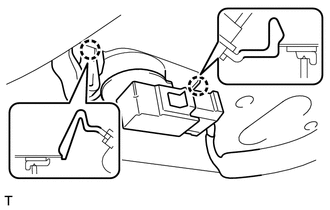

    1. A004JSP

      Disconnect the connector.

    2. Disengage the 2 claws to remove the license plate light assembly.

      Tech Tips

      Use the same procedure as for the other side.

  3. REMOVE LICENSE PLATE LIGHT BULB

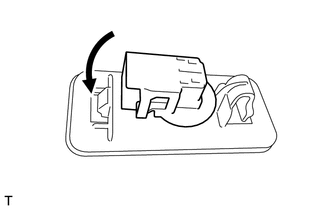

    1. A004I2Q

      Turn the license plate light socket and wire with the license plate light bulb in the direction indicated by the arrow shown in the illustration to remove them as a unit.

    2. Remove the license plate light bulb from the license plate light socket and wire.

      Tech Tips

      Use the same procedure as for the other side.
