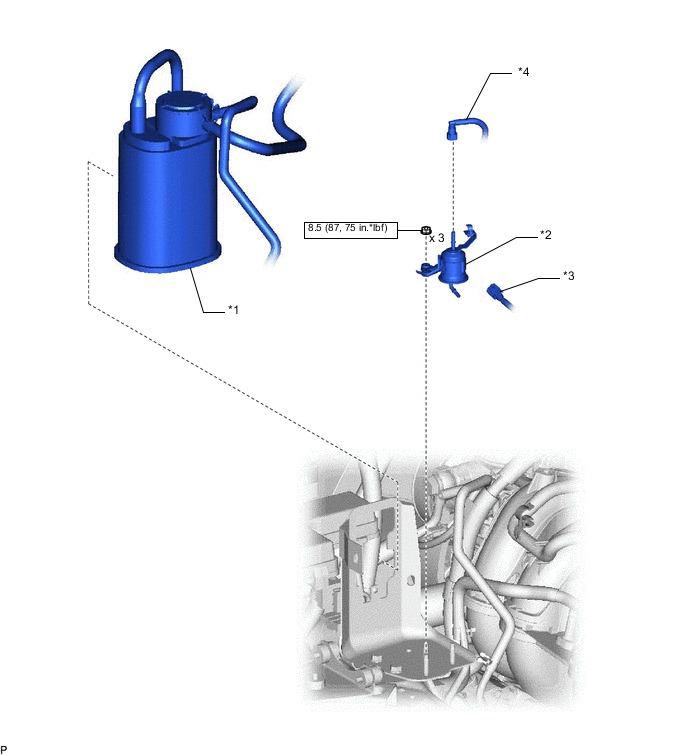

FUEL FILTER COMPONENTS
ILLUSTRATION
| *1 | CANISTER | *2 | FUEL FILTER ASSEMBLY |
| *3 | FUEL MAIN TUBE | *4 | NO. 1 FUEL HOSE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | CANISTER | *2 | FUEL FILTER ASSEMBLY |
| *3 | FUEL MAIN TUBE | *4 | NO. 1 FUEL HOSE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
