REAR VIEW MONITOR SYSTEM(except Sedan) PARTS LOCATION

ILLUSTRATION

E267057C01

*A

for Hatchback LHD

-

-

*1

BACK-UP LIGHT SWITCH ASSEMBLY (for EC60, EC61, EC65A or EC69)

*2

PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for K311)

*3

BACK-UP LIGHT SWITCH ASSEMBLY (for EA66)

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY

*5

REAR TELEVISION CAMERA ASSEMBLY

-

-

ILLUSTRATION

E267058C01

*A

for Hatchback RHD

-

-

*1

BACK-UP LIGHT SWITCH ASSEMBLY (for EC60, EC61 or EC69)

*2

PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for K311)

*3

RADIO AND DISPLAY RECEIVER ASSEMBLY

*4

REAR TELEVISION CAMERA ASSEMBLY

ILLUSTRATION

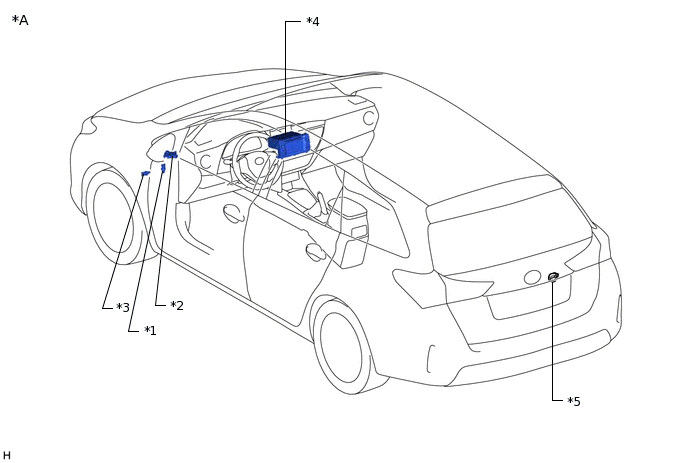

E276178C01

*A

for Wagon LHD

-

-

*1

BACK-UP LIGHT SWITCH ASSEMBLY (for EC60, EC61 or EC69)

*2

PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for K311)

*3

BACK-UP LIGHT SWITCH ASSEMBLY (for EA66)

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY

*5

REAR TELEVISION CAMERA ASSEMBLY

-

-

ILLUSTRATION

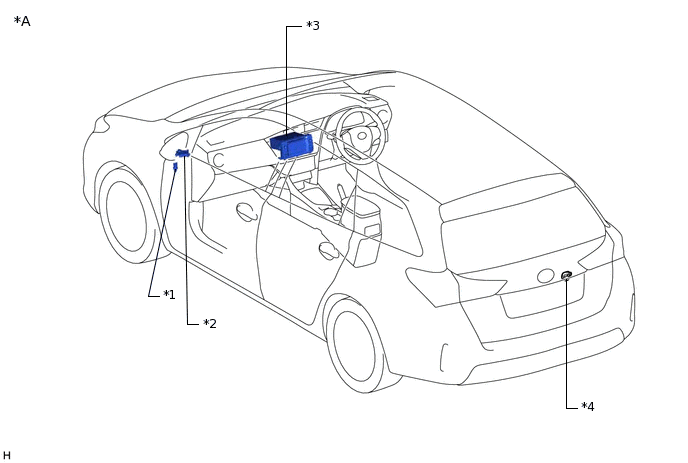

E276179C01

*A

for Wagon RHD

-

-

*1

BACK-UP LIGHT SWITCH ASSEMBLY (for EC60, EC61, EC65A or EC69)

*2

PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for K311)

*3

RADIO AND DISPLAY RECEIVER ASSEMBLY

*4

REAR TELEVISION CAMERA ASSEMBLY
