REAR SEAT ASSEMBLY(for Wagon) REMOVAL

PROCEDURE

  1. REMOVE DECK BOARD SUB-ASSEMBLY (w/ Deck Board)

    Click hereClick here

  2. REMOVE DECK BOARD ASSEMBLY (w/ Deck Board)

    Click hereClick here

  3. REMOVE FRONT DECK FLOOR BOX (w/ Deck Board)

    Click hereClick here

  4. REMOVE REAR FLOOR MAT ASSEMBLY

    Click hereClick here

  5. REMOVE REAR SEAT CUSHION ASSEMBLY

    Click here

  6. REMOVE REAR SEAT HEADREST ASSEMBLY

  7. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (w/ Center Headrest)

  8. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

    Click here

  9. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (for LH Side)

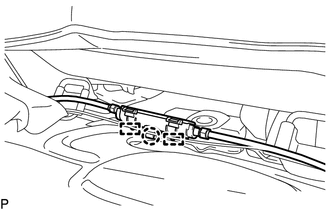

    1. B350412

      Disngage the claw and 2 guides.

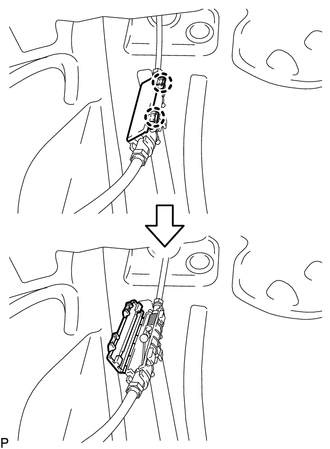

    2. B350413

      Disengage the 2 claws as shown in the illustration.

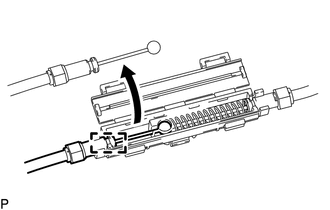

    3. B350415

      Disconnect the rear No. 1 seat lock cable assembly (seat side) from the rear No. 1 seat lock cable assembly (luggage side) as shown in the illustration.

  10. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (for RH Side)

    Tip:

    Use the same procedure for the RH side and LH side.

  11. REMOVE REAR SEATBACK ASSEMBLY RH

    Click here

  12. REMOVE REAR SEATBACK ASSEMBLY LH

    Click here

  13. REMOVE REAR SEAT CUSHION LOCK HOOK

    Click here
