СИСТЕМА МЕХАНИЧЕСКОЙ ТРАНСМИССИИ


  1. CONSTRUCTION


    1. A manual transmission case, extension housing sub-assembly and floor shift control shift lever retainer sub-assembly made of aluminum are used, thereby achieving weight reduction. In addition, the ribs have been optimally placed to reduce noise.

    2. A cast-iron intermediate plate is used. Due to this, the installment precision for each gear has been improved and noise during idling has been reduced.

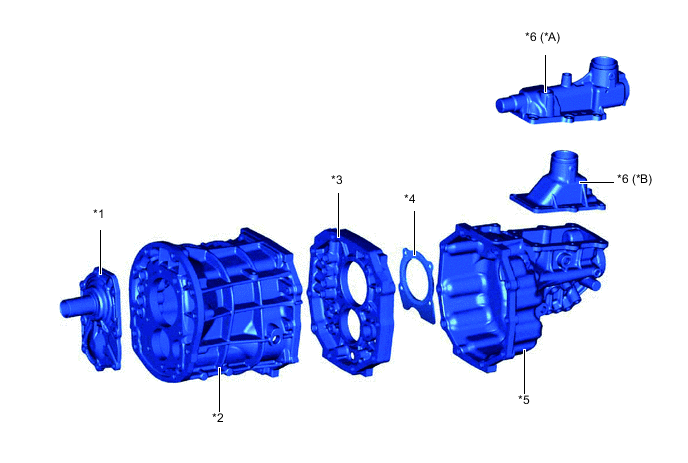

      A01KXCYC01
      *A Models with Large Console Box *B Models with Small Console Box
      *1 Front Bearing Retainer *2 Manual Transmission Case
      *3 Intermediate Plate *4 Output Shaft Bearing Retainer
      *5 Extension Housing Sub-assembly *6 Floor Shift Control Shift Lever Retainer Sub-assembly
