CONDENSER COMPONENTS

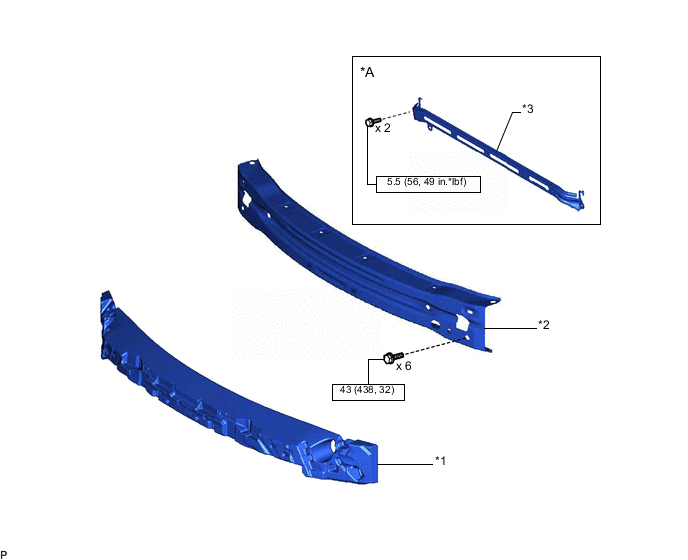

ILLUSTRATION
| *A | w/ Air Cooled Transmission Oil Cooler | - | - |
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT |
| *3 | OIL COOLER BRACKET | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

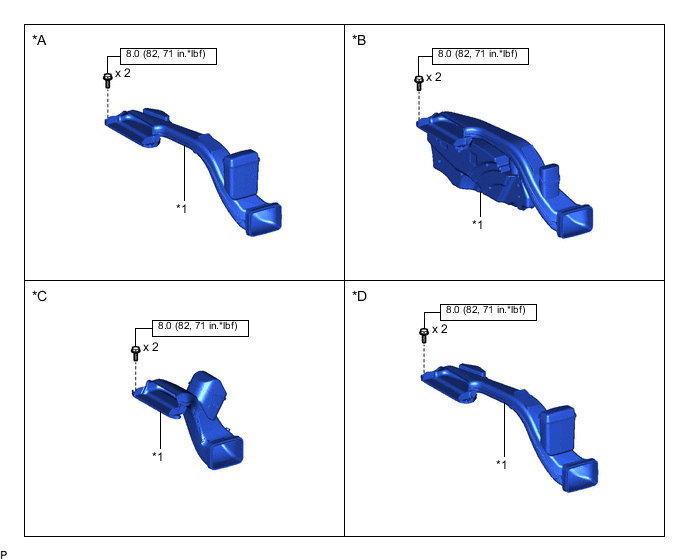

ILLUSTRATION
| *A | for 2AR-FE | *B | for A25A-FKS |
| *C | for 2GR-FKS | *D | for 6AR-FSE |
| *1 | INLET AIR CLEANER ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

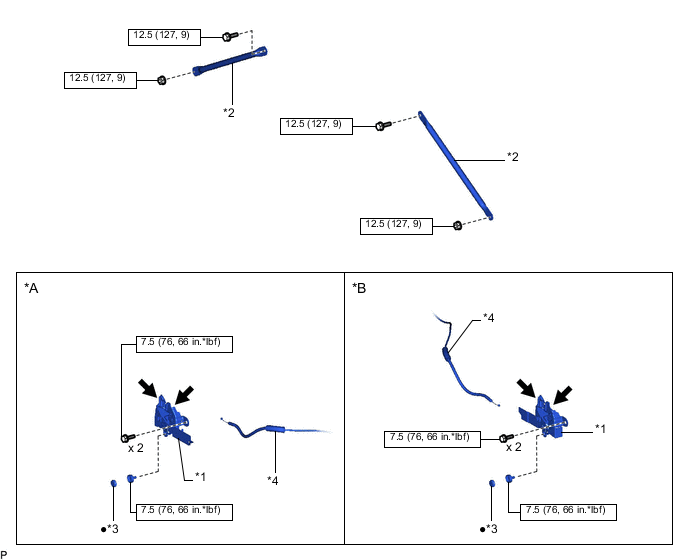

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | HOOD LOCK ASSEMBLY | *2 | UPPER RADIATOR MOUNTING BRACKET |
| *3 | HOOD LOCK NUT CAP | *4 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease | - | - |

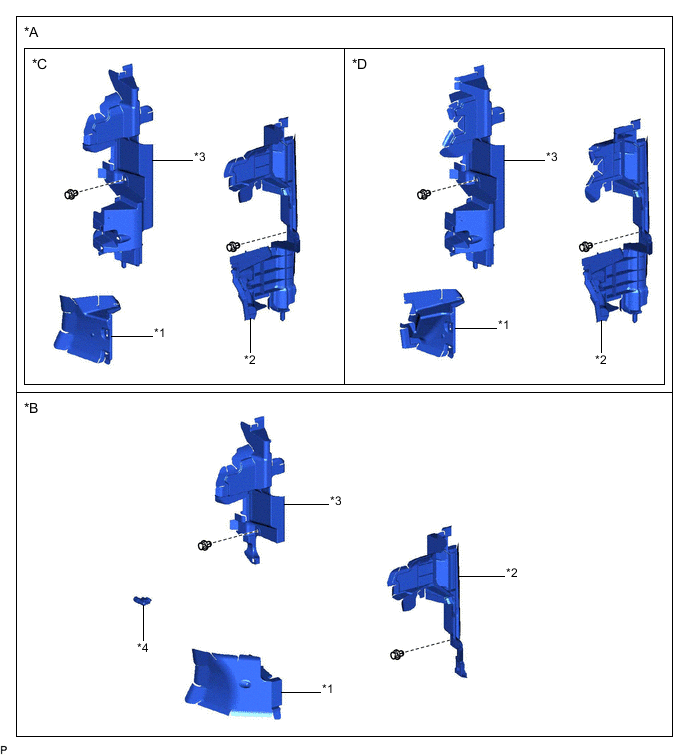

ILLUSTRATION
| *A | w/o Air Cooled Transmission Oil Cooler | *B | w/ Air Cooled Transmission Oil Cooler |
| *C | for Bar Type Radiator Grille | *D | for Mesh Type Radiator Grille |
| *1 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH | *2 | NO. 1 RADIATOR AIR GUIDE LH |
| *3 | NO. 1 RADIATOR AIR GUIDE RH | *4 | THERMISTOR ASSEMBLY |

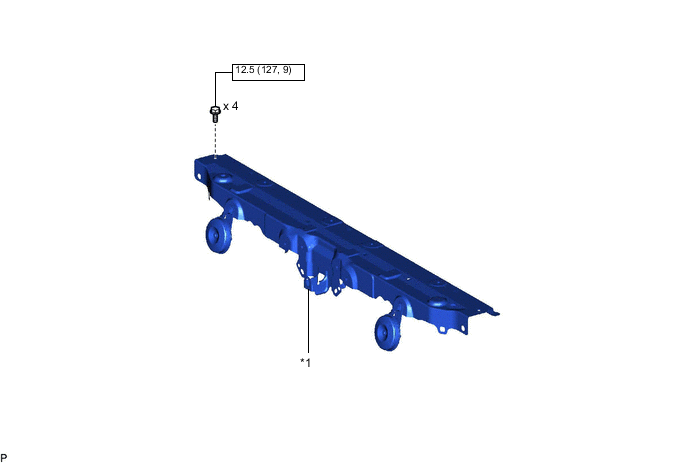

ILLUSTRATION
| *1 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

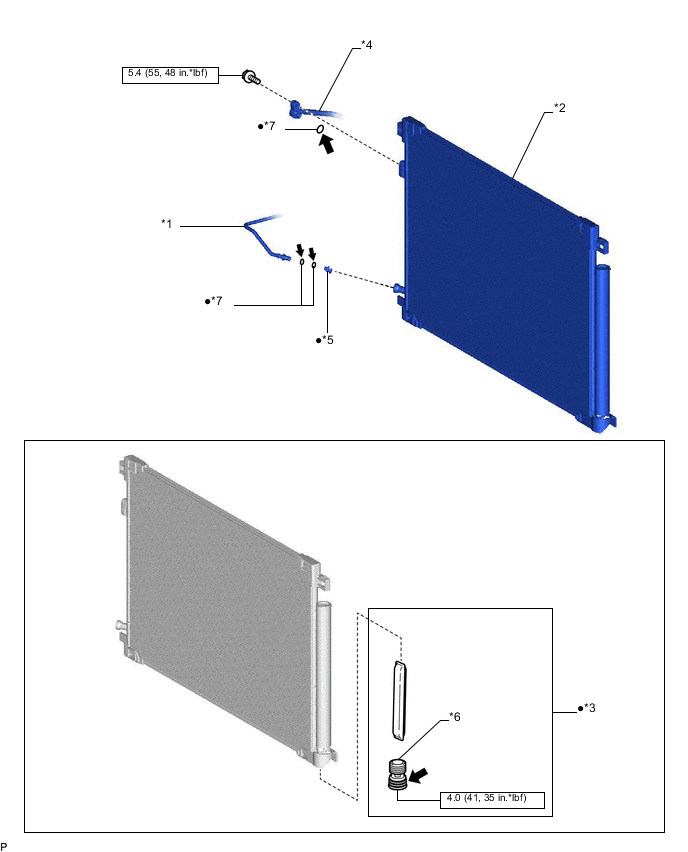

ILLUSTRATION
| *1 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY | *2 | COOLER CONDENSER ASSEMBLY |
| *3 | COOLER DRYER | *4 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY |
| *5 | PIPING CLAMP | *6 | CAP |
| *7 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |
