VANITY LIGHT REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE VANITY LIGHT ASSEMBLY

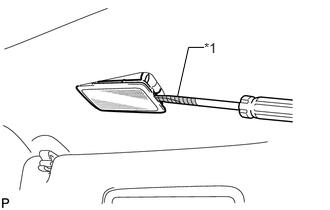

    1. E145295E02

      Using a screwdriver, detach the claw.

      Table 1. Text in Illustration

      *1

      Protective Tape
      Tip:

      Tape the screwdriver tip before use.

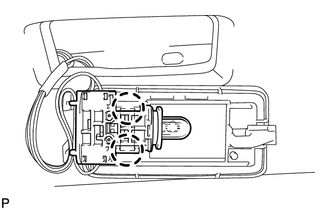

    2. E145297

      Detach the 2 claws and remove the vanity light.

  2. REMOVE VANITY LIGHT BULB

    1. Remove the bulb.
