PURGE VALVE REMOVAL

PROCEDURE

  1. REMOVE PURGE VSV

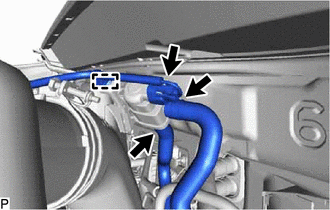

    1. A308637

      Disconnect the wire harness clamp and connector from the purge VSV.

    2. Slide the 2 clamps and disconnect the fuel vapor feed hose and No. 2 fuel vapor feed hose from the purge VSV.

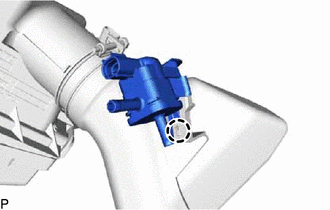

    3. A308540

      Detach the claw and remove the purge VSV from the air cleaner hose.
